Name: FH36-29S-0.3SHW(99)
Brand: Hirose Electric Co Ltd
SKU: FH36-29S-0.3SHW(99)
Availability: InStock

new-10%

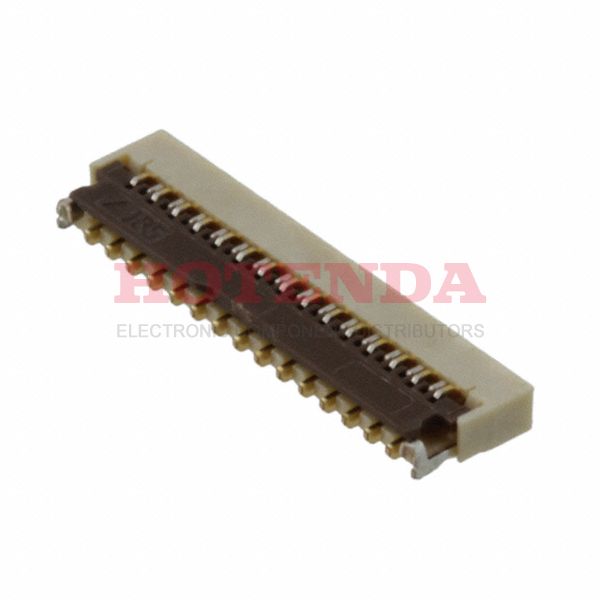

FH36-29S-0.3SHW(99)

Manufacturer part number:FH36-29S-0.3SHW(99)

Manufacturer:Hirose Electric Co Ltd

Description:FH36-29S-0.3SHW(99) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH36-29S-0.3SHW(99) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Cut Tape (CT)
Series	FH36
Feature	Zero Insertion Force (ZIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	29
Number of Rows	1
Gender	Female
Voltage - Rated	30V
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	29
Reach Compliance Code	unknown
Current Rating	200mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.406 inch
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.039 inch
Housing Color	Beige
Contact Style	BELLOWED TYPE
Insulation Resistance	50000000Ohm
Dielectric Withstanding Voltage	120VAC V
PCB Contact Row Spacing	2.3622 mm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH36-29S-0.3SHW(99) Product Details

FH36-29S-0.3SHW(99) Overview

Surface Mount, Right Angle is the mounting type.This product is packaged in a case marked Cut Tape (CT).Among the products in the FH36 Series, it is one of the most popular.As a result of its Zero Insertion Force (ZIF) feature, it possesses a great deal of power.Surface Mount is used to mount the part.Running in -55°C~85°C Operating Temperature.
