Name: FH23-21S-0.3SHW(51)
Brand: Hirose Electric Co Ltd
SKU: FH23-21S-0.3SHW(51)
Availability: InStock

new-10%

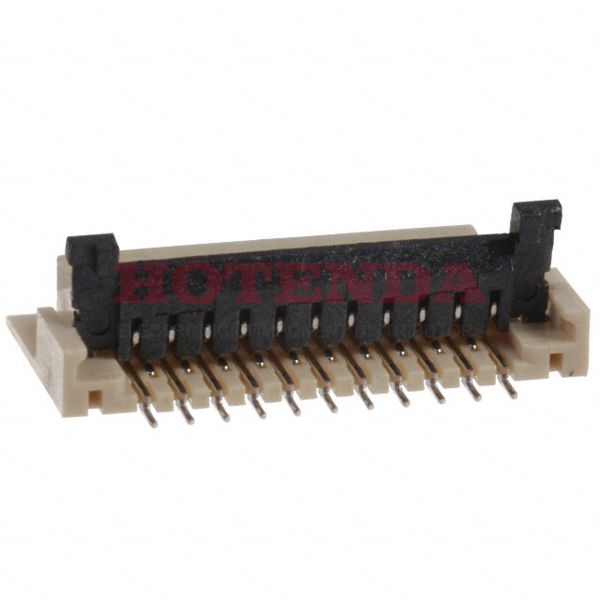

FH23-21S-0.3SHW(51)

Manufacturer part number:FH23-21S-0.3SHW(51)

Manufacturer:Hirose Electric Co Ltd

Description:FH23-21S-0.3SHW(51) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH23-21S-0.3SHW(51) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH23
JESD-609 Code	e0
Feature	Low Insertion Force (LIF)
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	21
Number of Rows	1
Voltage - Rated	30V
Additional Feature	STAGGERED CONFIGURATION
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.3A
Pitch	0.012 0.30mm
Total Number of Contacts	21
Reach Compliance Code	unknown
Current Rating	300mA
Reference Standard	UL
Contact Finish	Tin-Lead
Reliability	COMMERCIAL
Body Length or Diameter	0.346 inch
Number Of PCB Rows	2
Lead Pitch	300μm
PCB Contact Pattern	STAGGERED
Mating Information	NO
Body Breadth	0.049 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.185 inch
Contact Style	BELLOWED TYPE
Insulation Resistance	50000000Ohm
Dielectric Withstanding Voltage	90VAC V
PCB Contact Row Spacing	4.445 mm
Contact Pattern	RECTANGULAR
Insertion Force-Max	LIF N
Withdrawl Force-Min	LIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Width	5.2mm
Height Above Board	0.049 1.25mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH23-21S-0.3SHW(51) Product Details

FH23-21S-0.3SHW(51) Overview

Surface Mount, Right Angle is the type of mounting for the device.To package the product, we use a Tape & Reel (TR) case.It belongs to the FH23 Series of products.Additionally, there are other features such as STAGGERED CONFIGURATION.A number of aspects of its Low Insertion Force (LIF) feature make it more powerful.Surface Mount represents the mounting point for the part.It runs at -55°C~85°C Operating Temperature.
