Name: FH21-6S-1DS
Brand: Hirose Electric Co Ltd
SKU: FH21-6S-1DS
Availability: InStock

new-10%

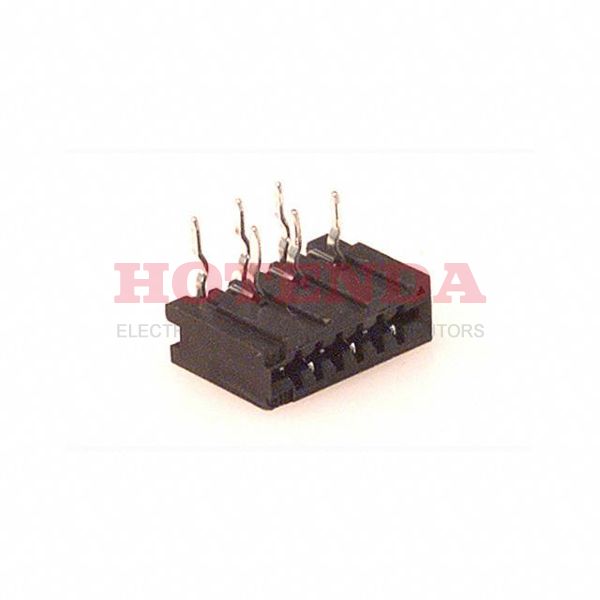

FH21-6S-1DS

Manufacturer part number:FH21-6S-1DS

Manufacturer:Hirose Electric Co Ltd

Description:FH21-6S-1DS datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH21-6S-1DS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Solder Plating
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-30°C~70°C
Packaging	Bulk
Published	2001
Series	FH21
JESD-609 Code	e0
Feature	Low Insertion Force (LIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	6
Number of Rows	1
Voltage - Rated	50V
Additional Feature	NONE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	6
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Solder Plating
Reliability	COMMERCIAL
Body Length or Diameter	0.315 inch
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Body Depth	0.228 inch
Contact Style	BELLOWED TYPE
Contact Resistance	40mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	LIF N
Withdrawl Force-Min	LIF N
Mating Cycles	10
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Straight
Length - Termination	0.114 inch
Height Above Board	0.106 2.70mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH21-6S-1DS Product Details

FH21-6S-1DS Overview

A FFC/FPC CONNECTOR packaging is included.Mounting type Through Hole, Right Angle is assigned to the device.A Bulk case is used to package the product.This product is from the FH21 Series.Other features include NONE, to name just a few.Several benefits come from the Low Insertion Force (LIF) feature.The part is mounted by Through Hole.There is no operating temperature for the device.
