Name: FH19S-26S-0.5SH(51)
Brand: Hirose Electric Co Ltd
SKU: FH19S-26S-0.5SH(51)
Availability: InStock

new-10%

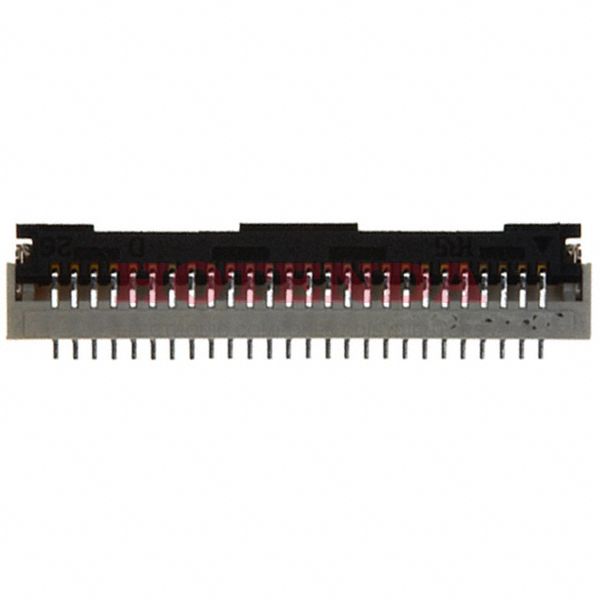

FH19S-26S-0.5SH(51)

Manufacturer part number:FH19S-26S-0.5SH(51)

Manufacturer:Hirose Electric Co Ltd

Description:FH19S-26S-0.5SH(51) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19S-26S-0.5SH(51) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~80°C
Packaging	Tape & Reel (TR)
Series	FH19S
JESD-609 Code	e0
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	26
Number of Rows	1
Voltage - Rated	50V
Additional Feature	LOW PROFILE, POLARIZED
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	26
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Tin-Lead
Lead Pitch	500μm
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH19S-26S-0.5SH(51) Product Details

FH19S-26S-0.5SH(51) Overview

This product is packaged in a FFC/FPC CONNECTOR carton.Surface Mount, Right Angle is the mounting type.It's packaged in a Tape & Reel (TR) case.This product is part of the FH19S Series.Moreover, there are a number of other features, including LOW PROFILE, POLARIZED, to name just a few.A number of benefits can be derived from the Solder Retention feature of this application.You've got Surface Mount mounted on the part.Operating temperature is set to -55°C~80°C.
