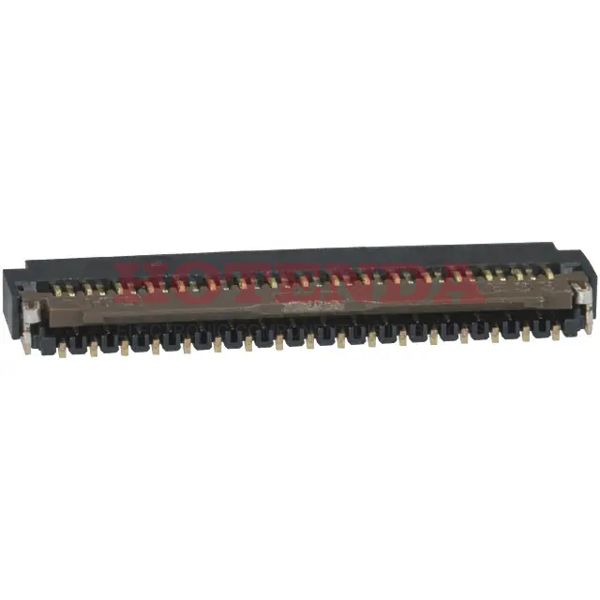

Name: FH26W-33S-0.3SHW(10)
Brand: Hirose Electric Co Ltd
SKU: FH26W-33S-0.3SHW(10)
Availability: InStock

new-10%

FH26W-33S-0.3SHW(10)

Manufacturer part number:FH26W-33S-0.3SHW(10)

Manufacturer:Hirose Electric Co Ltd

Description:FH26W-33S-0.3SHW(10) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH26W-33S-0.3SHW(10) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH26
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	33
Number of Rows	2
Voltage - Rated	30V
Additional Feature	STANDARD: IEC 61249-2-21, LOW PROFILE
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	YES
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	33
Reach Compliance Code	unknown
Current Rating	200mA
Contact Finish	Gold
Contact Gender	FEMALE
Housing Color	Black
Insulation Resistance	50MOhm
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 HB
RoHS Status	RoHS Compliant
Flammability Rating	UL94 HB

FH26W-33S-0.3SHW(10) Product Details

FH26W-33S-0.3SHW(10) Overview

There is a mounting type of Surface Mount, Right Angle for this device.Packaged in a Tape & Reel (TR) case.Among the products in the FH26 Series, it is one of the most popular.Furthermore, there are other features available, such as STANDARD: IEC 61249-2-21, LOW PROFILE, to name a few.As a result of its Zero Insertion Force (ZIF) feature, it possesses a great deal of power.Surface Mount is mounting the part.-55°C~85°C Operating Temperature is the default operating temperature for the device.
