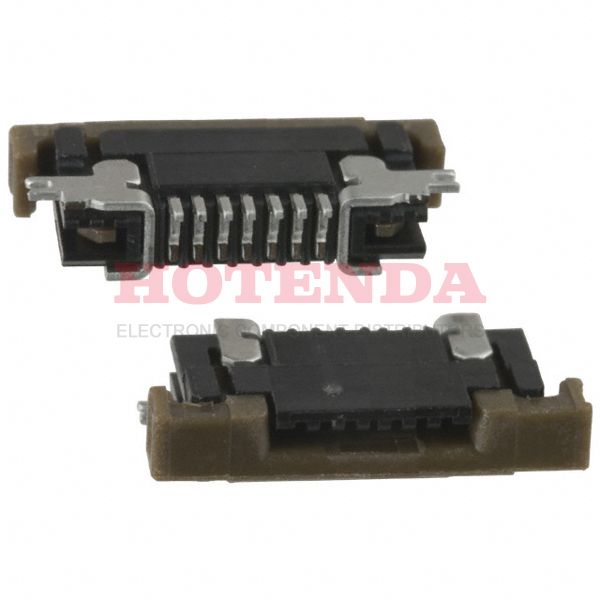

Name: SFV7R-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFV7R-2STE1LF
Availability: InStock

new-10%

SFV7R-2STE1LF

Manufacturer part number:SFV7R-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFV7R-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFV7R-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	SFV-R
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	7
Number of Rows	1
Voltage - Rated	50V
Additional Feature	SIDE ENTRY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	7
Reach Compliance Code	unknown
Contact Finish	Tin
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Brown
Height Above Board	0.071 1.80mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0

SFV7R-2STE1LF Product Details

SFV7R-2STE1LF Overview

The product comes in a package of FFC/FPC CONNECTOR.Surface Mount, Right Angle indicates that the device is mounted.It has been determined that a Tape & Reel (TR) case is necessary to package the product.SFV-R Series product.Furthermore, there are other features such as SIDE ENTRY, to name a few.Several benefits come from the Solder Retention, Zero Insertion Force (ZIF) feature.There is no operating temperature for the device.
