Name: SFR6R-1STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFR6R-1STE1LF
Availability: InStock

new-10%

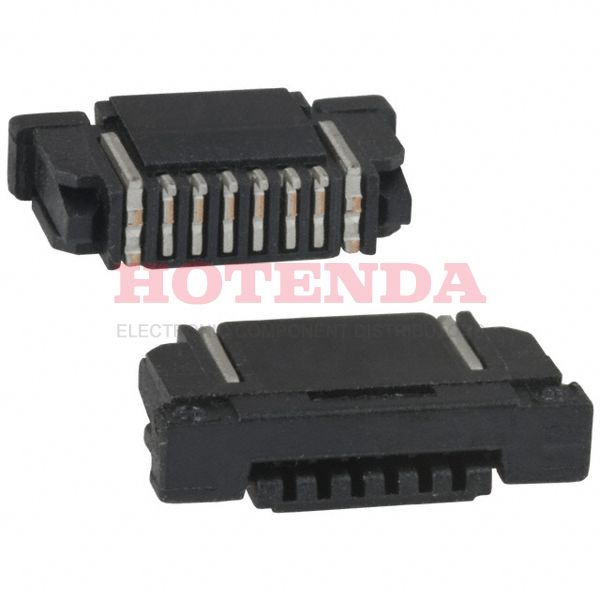

SFR6R-1STE1LF

Manufacturer part number:SFR6R-1STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFR6R-1STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFR6R-1STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Packaging	Tape & Reel (TR)
Series	SFR
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	6
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	1
Voltage - Rated	100V
Additional Feature	SURFLOK, LOW PROFILE, SIDE ENTRY, ZIF
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	6
Orientation	Right Angle
Depth	5.5mm
Current Rating	500mA
Contact Finish	Tin
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	30mOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Max Voltage Rating (DC)	100V
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight or Tapered
Locking Feature	Slide Lock
Contact Location	Bottom
Length	10.2mm
Height Above Board	0.098 2.50mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

SFR6R-1STE1LF Product Details

SFR6R-1STE1LF Overview

This product is packaged in a FFC/FPC CONNECTOR cartonA Surface Mount, Right Angle mounting type is specified for the device.Packaged in a Tape & Reel (TR) case.There is a product in the SFR Series.In addition, there are other features, such as SURFLOK, LOW PROFILE, SIDE ENTRY, ZIF, to mention just a few.The best time to use this device is when the temperature is below 85°C.There's a minimum temperature of -55°C for this device.A number of benefits can be derived from the Zero Insertion Force (ZIF) feature of this application.There is a Surface Mount mount on the part.
