Name: 5020783910
Brand: Molex
SKU: 5020783910
Availability: InStock

new-10%

5020783910

Manufacturer part number:5020783910

Manufacturer:Molex

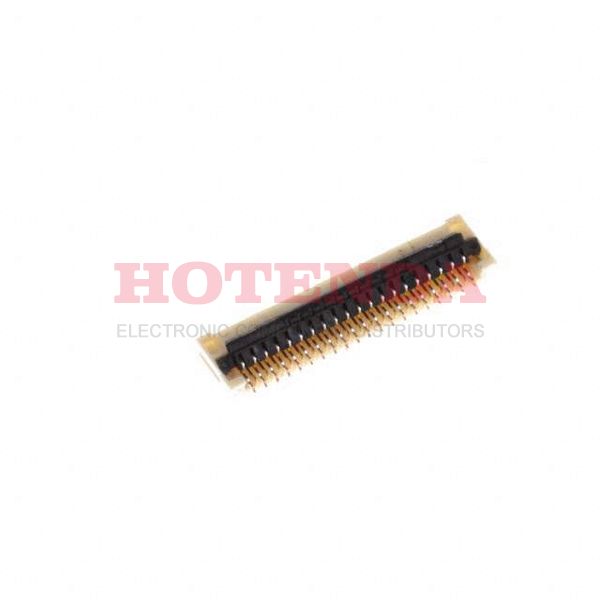

Description:5020783910 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5020783910 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Plastic, Glass Filled
Mounting Option 1	LOCKING
Actuator Material	Plastic, Glass Filled
Board Mounting Option	FITTING NAIL
Operating Temperature	-20°C~85°C
Packaging	Cut Tape (CT)
Series	Easy-On 502078
JESD-609 Code	e4
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	39
Number of Rows	1
Voltage - Rated	50V
Additional Feature	BOTTOM CONTACT STYLE, EASY-ON, POLARIZED
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.010 0.25mm
Total Number of Contacts	39
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.453 inch
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Contact Style	BELLOWED TYPE
Contact Resistance	80mOhm
Insulation Resistance	50000000Ohm
Contact Pattern	RECTANGULAR
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0, UL94 HB
RoHS Status	ROHS3 Compliant

5020783910 Product Details

5020783910 Overview

A Surface Mount, Right Angle mounting type is specified for the device.Packaging for the product is carried out via a Cut Tape (CT) case.There is a product in the Easy-On 502078 Series.Furthermore, there are other features available, such as BOTTOM CONTACT STYLE, EASY-ON, POLARIZED, to name a few.Devices operate at -20°C~85°C operating temperatures.
