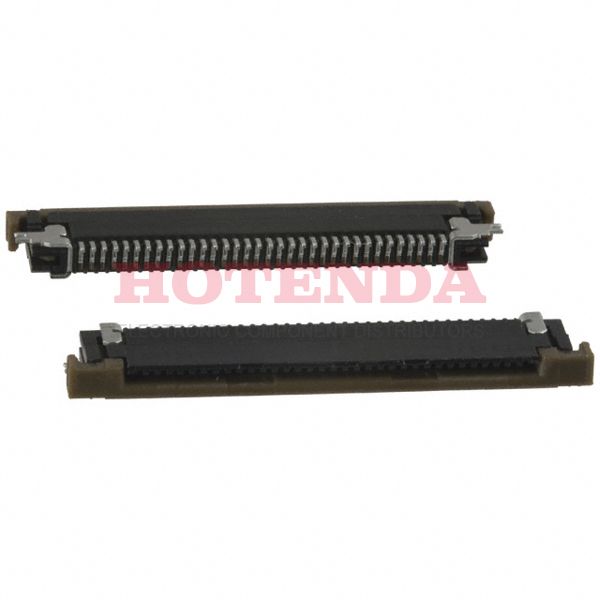

Name: SFV34R-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFV34R-2STE1LF
Availability: InStock

new-10%

SFV34R-2STE1LF

Manufacturer part number:SFV34R-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFV34R-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFV34R-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	SFV-R
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	34
Number of Rows	1
Additional Feature	SIDE ENTRY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	34
Orientation	Right Angle
Depth	4.2mm
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Tin
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Contact Resistance	30mOhm
Insulation Resistance	100MOhm
Max Voltage Rating (AC)	50V
Wire/Cable Type	Straight
Max Voltage Rating (DC)	50V
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Brown
Contact Location	Top
Length	22.5mm
Height Above Board	0.071 1.80mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

SFV34R-2STE1LF Product Details

SFV34R-2STE1LF Overview

FFC/FPC CONNECTOR packaging is included.Mounting type Surface Mount, Right Angle is selected for the device.An orange Tape & Reel (TR) case is used to package the product.This is from the SFV-R Series.Among other features are SIDE ENTRY, to name only a few.A number of features make it more powerful because of its Solder Retention, Zero Insertion Force (ZIF) feature.Mounting of the part is based on Surface Mount.-55°C~105°C Operating Temperature is used by the device.
