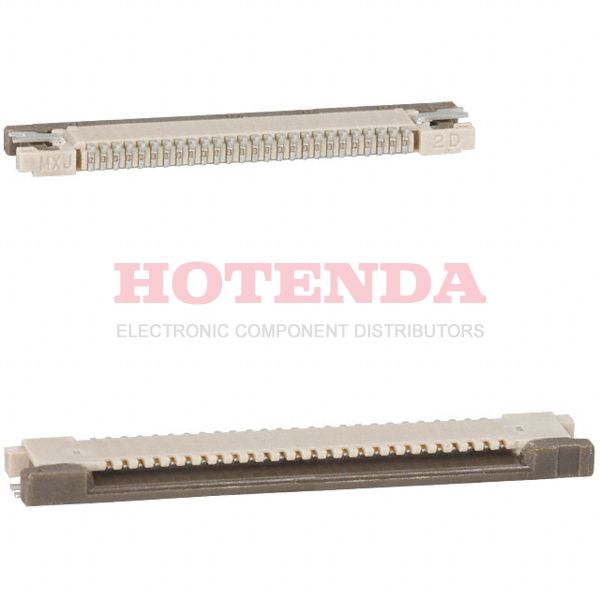

Name: 0545502694
Brand: Molex
SKU: 0545502694
Availability: InStock

new-10%

0545502694

Manufacturer part number:0545502694

Manufacturer:Molex

Description:0545502694 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0545502694 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 54550
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	26
Number of Rows	1
Voltage - Rated	50V
Additional Feature	ZIF
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	26
Contact Finish	Tin Bismuth
Contact Gender	FEMALE
UL Flammability Code	94V-0
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.28mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0545502694 Product Details

0545502694 Overview

Packaging for this item is FFC/FPC CONNECTOR.Its mounting type is Surface Mount, Right Angle.It has been determined that a Tape & Reel (TR) case is necessary to package the product.A member of the Easy-On 54550 Series.Moreover, there are a number of other features, including ZIF, to name just a few.With its Solder Retention, Zero Insertion Force (ZIF) feature, it is more powerful in many ways.As a result, the device runs at -20°C~85°C Operating Temperature.
