Name: FH34S-24S-0.5SH(50)
Brand: Hirose Electric Co Ltd
SKU: FH34S-24S-0.5SH(50)
Availability: InStock

new-10%

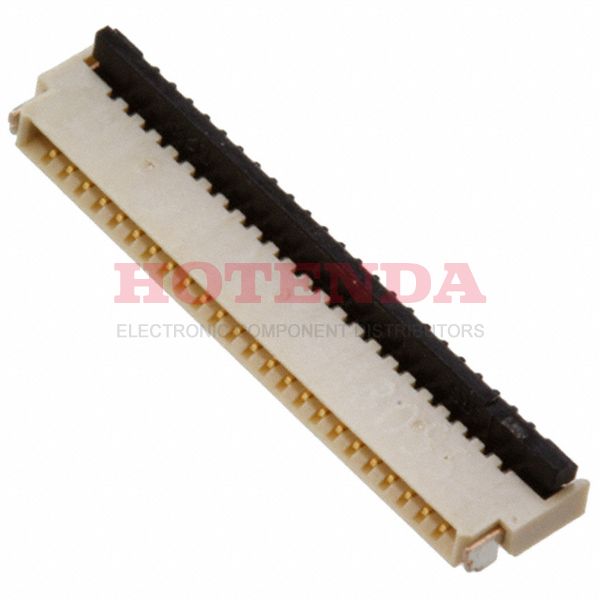

FH34S-24S-0.5SH(50)

Manufacturer part number:FH34S-24S-0.5SH(50)

Manufacturer:Hirose Electric Co Ltd

Description:FH34S-24S-0.5SH(50) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH34S-24S-0.5SH(50) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH34S
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	24
Number of Rows	1
Gender	Receptacle
Voltage - Rated	50V
Additional Feature	LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	24
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.039 inch
UL Flammability Code	94V-0
Housing Color	Beige
Contact Style	BELLOWED TYPE
Insulation Resistance	500MOhm
Wire/Cable Type	Flat Flex
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Contact Location	Dual
Plating Thickness	2μin
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH34S-24S-0.5SH(50) Product Details

FH34S-24S-0.5SH(50) Overview

The product is packaged in FFC/FPC CONNECTOR.Surface Mount, Right Angle is the mounting type.We pack the product in a Tape & Reel (TR) case.There is a product in the FH34S Series.There are also features like LOW PROFILE, just to name a few.In many ways, it is more powerful due to its Zero Insertion Force (ZIF) feature.Surface Mount is used to mount the part.The device runs in -55°C~85°C Operating Temperature.
