Name: FH16M-96S-0.4SHW(05)
Brand: Hirose Electric Co Ltd
SKU: FH16M-96S-0.4SHW(05)
Availability: InStock

new-10%

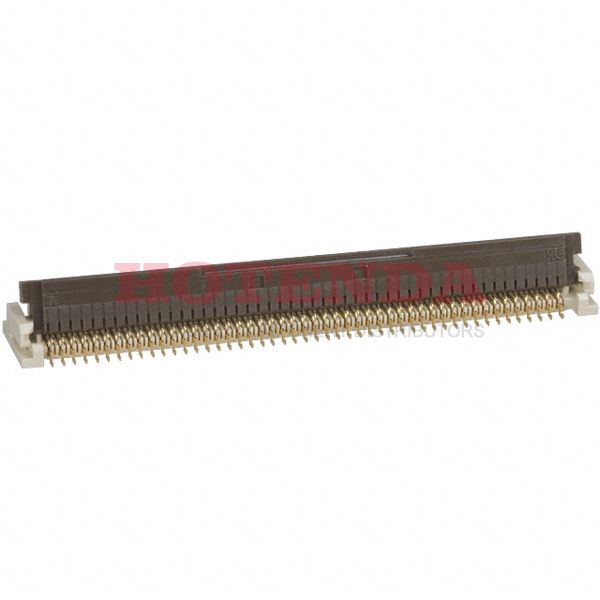

FH16M-96S-0.4SHW(05)

Manufacturer part number:FH16M-96S-0.4SHW(05)

Manufacturer:Hirose Electric Co Ltd

Description:FH16M-96S-0.4SHW(05) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH16M-96S-0.4SHW(05) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~70°C
Packaging	Tape & Reel (TR)
Series	FH16
JESD-609 Code	e4
Feature	Pick and Place Cap, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	96
Number of Rows	1
Voltage - Rated	50V
HTS Code	8536.69.40.51
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.3A
Pitch	0.016 0.40mm
Total Number of Contacts	96
Reach Compliance Code	unknown
Current Rating	300mA
Contact Finish	Gold
Lead Pitch	400μm
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Beige
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed
Locking Feature	Flip Lock
Actuator Color	Brown
Contact Finish Thickness	Flash
Height Above Board	0.118 3.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FH16M-96S-0.4SHW(05) Product Details

FH16M-96S-0.4SHW(05) Overview

This device has a Surface Mount, Right Angle mounting type.In order to package the product, a Tape & Reel (TR) case is used.This product is part of the FH16 Series.In many ways, it is more powerful due to its Pick and Place Cap, Zero Insertion Force (ZIF) feature.You've got Surface Mount mounted on the part.-40°C~70°C Operating Temperature is the default operating temperature for the device.
