Name: FH39-29S-0.3SHW(99)
Brand: Hirose Electric Co Ltd
SKU: FH39-29S-0.3SHW(99)
Availability: InStock

new-10%

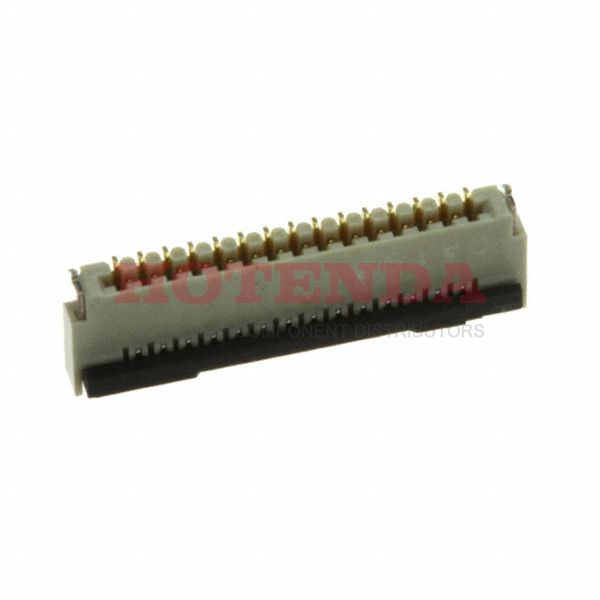

FH39-29S-0.3SHW(99)

Manufacturer part number:FH39-29S-0.3SHW(99)

Manufacturer:Hirose Electric Co Ltd

Description:FH39-29S-0.3SHW(99) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH39-29S-0.3SHW(99) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH39
Feature	Zero Insertion Force (ZIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	29
Number of Rows	2
Voltage - Rated	30V
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	29
Reach Compliance Code	unknown
Current Rating	200mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Body Breadth	0.043 inch
Housing Color	Beige
Body Depth	0.14 inch
Contact Style	BELLOWED TYPE
Insulation Resistance	50000000Ohm
Dielectric Withstanding Voltage	120VAC V
PCB Contact Row Spacing	3.0734 mm
Contact Pattern	STAGGERED
Insertion Force-Max	ZIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock, Backlock
Actuator Color	Black
Height Above Board	0.044 1.12mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH39-29S-0.3SHW(99) Product Details

FH39-29S-0.3SHW(99) Overview

This device's mounting type is Surface Mount, Right Angle.We package the product with a Tape & Reel (TR) case.FH39 Series product.This feature renders it more powerful in a number of ways because of its Zero Insertion Force (ZIF) feature.Surface Mount represents the mounting point for the part.The device runs in -55°C~85°C Operating Temperature.
