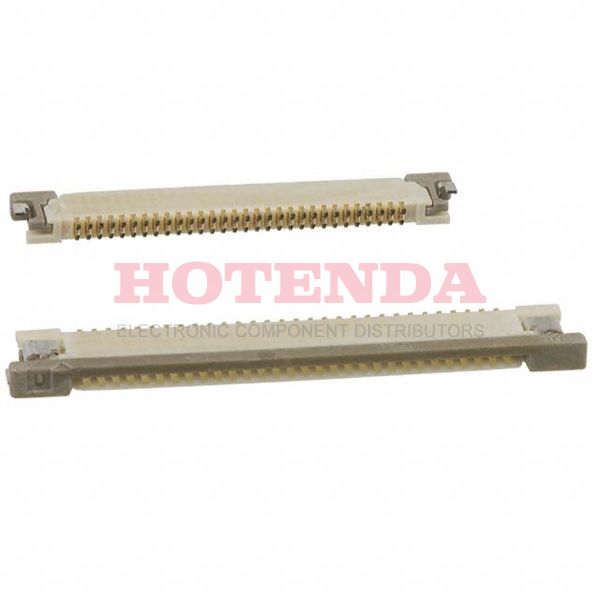

Name: XF2L-3035-1
Brand: Omron Electronics Inc-EMC Div
SKU: XF2L-3035-1
Availability: InStock

new-10%

XF2L-3035-1

Manufacturer part number:XF2L-3035-1

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2L-3035-1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2L-3035-1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2004
Series	XF2L
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Number of Positions	30
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Contact Finish	Tin Alloy
Housing Color	Natural
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight
Locking Feature	Slide Lock
Actuator Color	Brown
Contact Finish Thickness	78.7μin 2.00μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0

XF2L-3035-1 Product Details

XF2L-3035-1 Overview

Surface Mount, Right Angle indicates that the device is mounted.Packaged in a Tape & Reel (TR) case.A member of the XF2L Series.A number of features make the Zero Insertion Force (ZIF) feature more powerful.Device runs in -30°C~85°C operating temperature.
