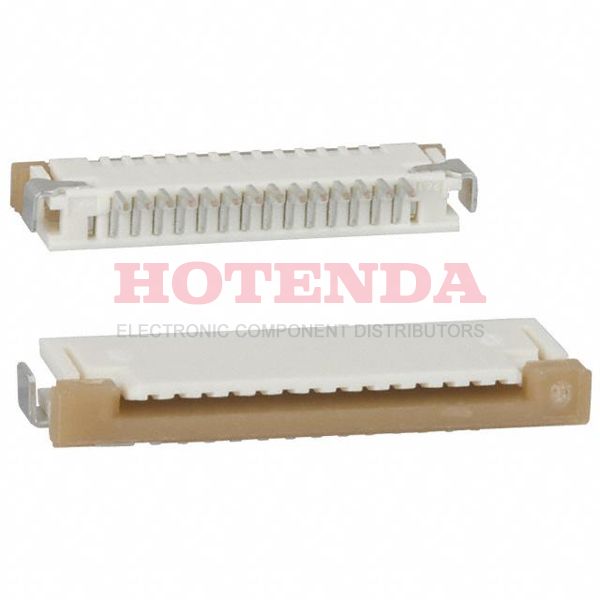

Name: 0522071485
Brand: Molex
SKU: 0522071485
Availability: InStock

new-10%

0522071485

Manufacturer part number:0522071485

Manufacturer:Molex

Description:0522071485 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0522071485 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Mounting Option 1	LOCKING
Actuator Material	Polyphenylene Sulfide (PPS)
Board Mounting Option	FITTING NAIL
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 52207
JESD-609 Code	e6
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	14
Number of Rows	1
Voltage - Rated	125V
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Total Number of Contacts	14
Reference Standard	UL, CSA
Contact Finish	Tin Bismuth
Reliability	COMMERCIAL
Body Length or Diameter	0.799 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.106 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Body Depth	0.299 inch
Contact Style	BELLOWED TYPE
Contact Resistance	20mOhm
Insulation Resistance	100000000Ohm
Dielectric Withstanding Voltage	700VAC V
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Insulator Color	NATURAL
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	39.4μin 1.00μm
Plating Thickness	39μin
Height Above Board	0.106 2.70mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0522071485 Product Details

0522071485 Overview

A FFC/FPC CONNECTOR package is included with it.Mounting type Surface Mount, Right Angle is selected for the device.We package the product with a Tape & Reel (TR) case.The product is a part of the Easy-On 52207 Series.A number of advantages can be derived from its Solder Retention, Zero Insertion Force (ZIF) feature.-30°C~85°C Operating Temperature is the default operating temperature for the device.
