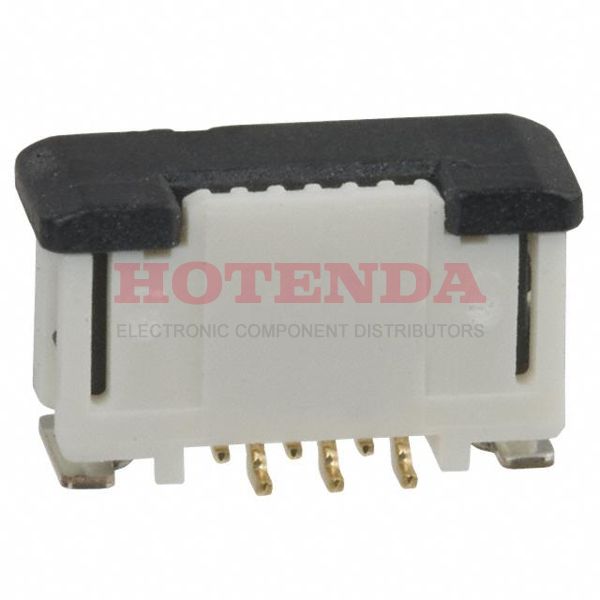

Name: XF2J-2424-11
Brand: Omron Electronics Inc-EMC Div
SKU: XF2J-2424-11
Availability: InStock

new-10%

XF2J-2424-11

Manufacturer part number:XF2J-2424-11

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2J-2424-11 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2J-2424-11 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2005
Series	XF2J
JESD-609 Code	e3
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	24
Number of Rows	1
Voltage - Rated	50V
Additional Feature	LOW PROFILE, ZIF
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	24
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Tin Alloy
Reliability	COMMERCIAL
Number Of PCB Rows	2
Lead Pitch	500μm
PCB Contact Pattern	STAGGERED
Body Breadth	0.116 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Natural
Body Depth	0.163 inch
Insulation Resistance	100000000Ohm
PCB Contact Row Spacing	2.3876 mm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Height	4.15mm
Length	16.5mm
Width	3.4mm
Contact Finish Thickness	78.7μin 2.00μm
Plating Thickness	80μin
Height Above Board	0.163 4.15mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

XF2J-2424-11 Product Details

XF2J-2424-11 Overview

This device's mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.This product is in the XF2J Series.There are also other features like LOW PROFILE, ZIF, to name a few.A number of advantages can be derived from its Zero Insertion Force (ZIF) feature.Mounting of the part is based on Surface Mount.Operating temperature is set to -30°C~85°C.
