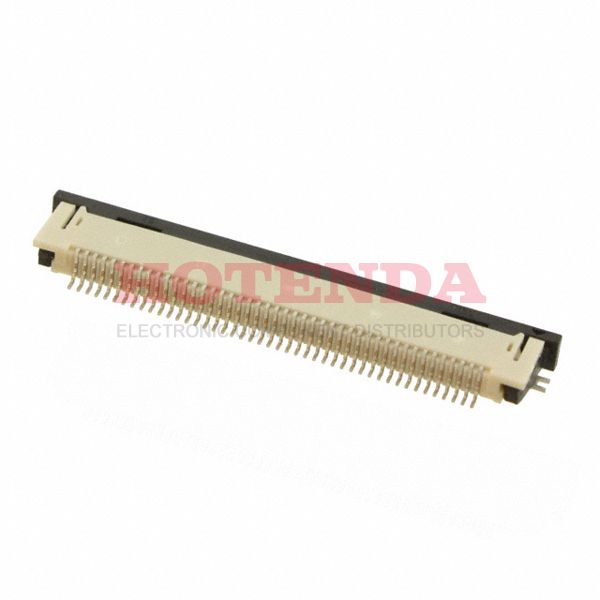

Name: 0541324597
Brand: Molex
SKU: 0541324597
Availability: InStock

new-10%

0541324597

Manufacturer part number:0541324597

Manufacturer:Molex

Description:0541324597 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0541324597 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA46), Nylon 4/6
Mounting Option 1	LOCKING
Actuator Material	Polyphenylene Sulfide (PPS)
Board Mounting Option	FITTING NAIL
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 54132
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	45
Number of Rows	1
Voltage - Rated	50V
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	45
Reference Standard	UL
Contact Finish	Tin Bismuth
Reliability	COMMERCIAL
Body Length or Diameter	1.102 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.079 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Body Depth	0.22 inch
Contact Style	SINGLE PRONG
Insulation Resistance	50000000Ohm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	39.4μin 1.00μm
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0541324597 Product Details

0541324597 Overview

The packaging is FFC/FPC CONNECTOR.Surface Mount, Right Angle indicates that the device is mounted.An orange Tape & Reel (TR) case is used to package the product.It's from the Easy-On 54132 Series.Its Solder Retention, Zero Insertion Force (ZIF) feature renders it more powerful in many ways.This device operates at a temperature of -20°C~85°C.
