Name: 2013496-9
Brand: TE Connectivity AMP Connectors
SKU: 2013496-9
Availability: InStock

new-10%

2013496-9

Manufacturer part number:2013496-9

Manufacturer:TE Connectivity AMP Connectors

Description:2013496-9 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:2013496-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	29 Weeks
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
PCB Mounting Orientation	Right Angle
Operating Temperature	-25°C~85°C
Packaging	Tape & Reel (TR)
Published	2001
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Connector, Receptacle, Socket
Number of Positions	27
Max Operating Temperature	85°C
Min Operating Temperature	-25°C
Color	Black
Number of Rows	1
Gender	Female
Voltage - Rated	50V
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Orientation	Right Angle
Shielding	Unshielded
Contact Finish	Gold
Number of Contacts	27
Housing Color	Natural
ELV	Compliant
Wire/Cable Type	Flat Flex
Contact Current Rating	200mA
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Black
Contact Location	Bottom
Height	1.2mm
Length	9.9mm
Width	2.9mm
Plating Thickness	100 nm
Length - Tail	600μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

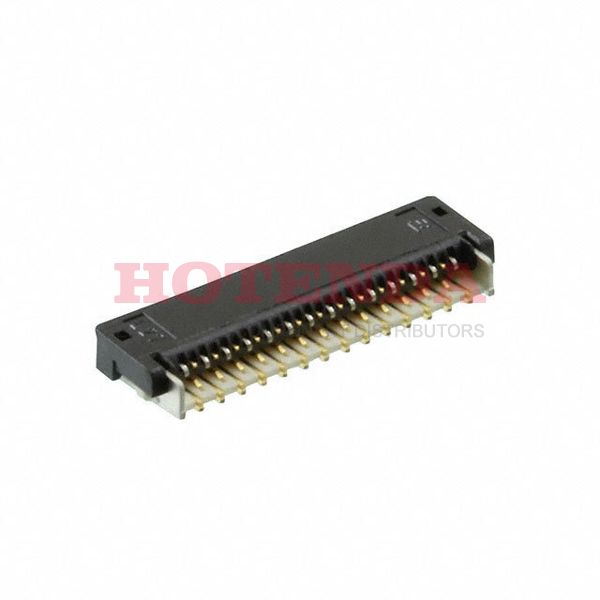

2013496-9 Product Details

2013496-9 Overview

This product is packaged in a Connector, Receptacle, Socket carton.This device is mounted in the Surface Mount, Right Angle position.To package the product, a Tape & Reel (TR) case is used.It works best at below 85°C.The device must run at -25°C degrees.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.There's a Surface Mount on the part.Devices operate at -25°C~85°C operating temperatures.
