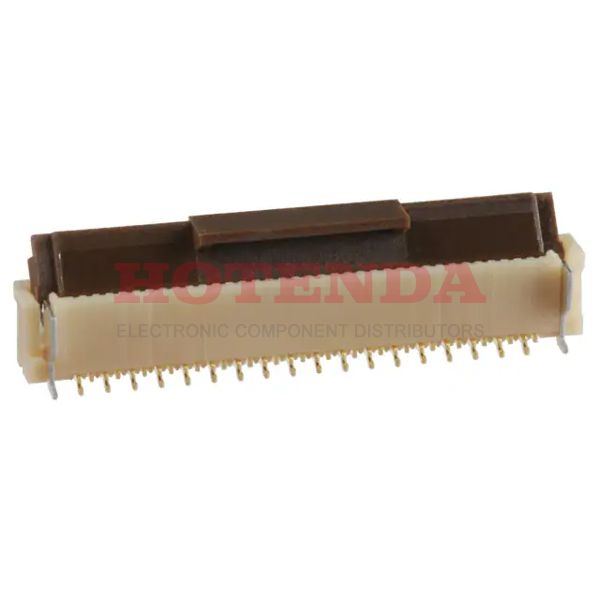

Name: FH12-36S-0.5SV(1)(98)
Brand: Hirose Electric Co Ltd
SKU: FH12-36S-0.5SV(1)(98)
Availability: InStock

new-10%

FH12-36S-0.5SV(1)(98)

Manufacturer part number:FH12-36S-0.5SV(1)(98)

Manufacturer:Hirose Electric Co Ltd

Description:FH12-36S-0.5SV(1)(98) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH12-36S-0.5SV(1)(98) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA), Nylon
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	FH12
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	36
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Gold
Housing Color	Beige
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.142 3.60mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH12-36S-0.5SV(1)(98) Product Details

FH12-36S-0.5SV(1)(98) Overview

The product is packaged in FFC/FPC CONNECTOR.Mounting type Surface Mount is selected for the device.Packaging is performed using a Tape & Reel (TR) case.The product is a part of the FH12 Series.This feature makes it more powerful in a number of ways due to its Solder Retention, Zero Insertion Force (ZIF) feature.There's a Surface Mount mount on the part.-40°C~85°C Operating Temperature is what the device runs at.
