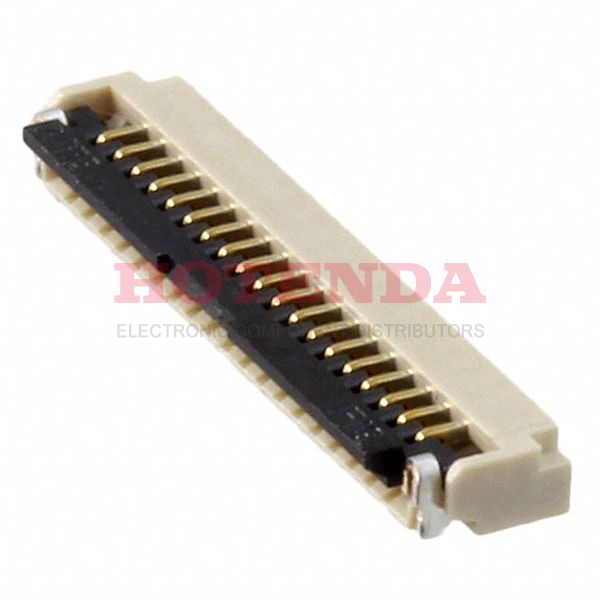

Name: FH33J-19S-0.5SH(10)
Brand: Hirose Electric Co Ltd
SKU: FH33J-19S-0.5SH(10)
Availability: InStock

new-10%

FH33J-19S-0.5SH(10)

Manufacturer part number:FH33J-19S-0.5SH(10)

Manufacturer:Hirose Electric Co Ltd

Description:FH33J-19S-0.5SH(10) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH33J-19S-0.5SH(10) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH33J
JESD-609 Code	e3
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	19
Number of Rows	1
Gender	Receptacle
Voltage - Rated	50V
Additional Feature	ZIF, LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	19
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	1
UL Flammability Code	94V-0
Contact Resistance	50mOhm
Insulation Resistance	500MOhm
Wire/Cable Type	Flat Flex
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Contact Finish Thickness	Flash
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH33J-19S-0.5SH(10) Product Details

FH33J-19S-0.5SH(10) Overview

Packaging for this item is FFC/FPC CONNECTOR.This device has a Surface Mount, Right Angle mounting type.To package the product, we use a Tape & Reel (TR) case.This product is from the FH33J Series.Furthermore, there are other features such as ZIF, LOW PROFILE, to name a few.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.This part is mounted by Surface Mount. This device operates at a temperature of -55°C~85°C.
