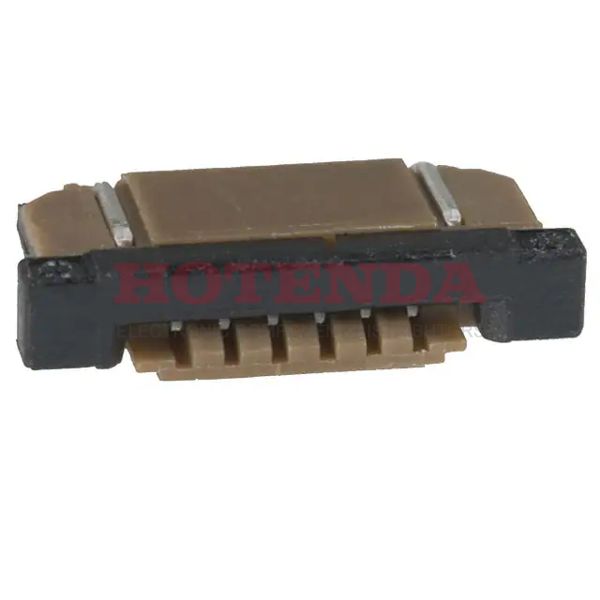

Name: SFW6R-1STE1
Brand: Amphenol ICC (FCI)
SKU: SFW6R-1STE1
Availability: InStock

new-10%

SFW6R-1STE1

Manufacturer part number:SFW6R-1STE1

Manufacturer:Amphenol ICC (FCI)

Description:SFW6R-1STE1 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFW6R-1STE1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Packaging	Tape & Reel (TR)
Series	SFW-R
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	6
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Number of Rows	1
Pitch	0.039 1.00mm
Orientation	Right Angle
Depth	7.5mm
Contact Finish	Tin Alloy
Number of Contacts	6
Housing Color	Brown
Contact Resistance	30mOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Length	11.8mm
Height Above Board	0.106 2.70mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0

SFW6R-1STE1 Product Details

SFW6R-1STE1 Overview

A Surface Mount, Right Angle mounting type is specified for the device.We use a Tape & Reel (TR) case to package the product.A member of the SFW-R Series.If it is to be used, it should be kept at a temperature below 105°C.There must be a minimum temperature of -55°C for this device to operate.Its Zero Insertion Force (ZIF) feature renders it more powerful in many ways.This part is mounted by Surface Mount.
