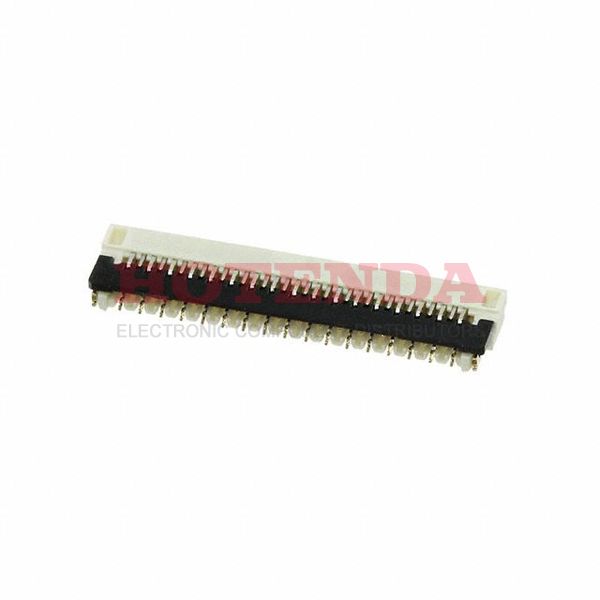

Name: 5035663300
Brand: Molex
SKU: 5035663300
Availability: InStock

new-10%

5035663300

Manufacturer part number:5035663300

Manufacturer:Molex

Description:5035663300 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5035663300 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Option 1	LOCKING
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2015
Series	Easy-On 503566
Feature	Solder Retention
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	33
Number of Rows	1
Voltage - Rated	50V
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	33
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Housing Color	White
Insulation Resistance	50000000Ohm
Contact Pattern	RECTANGULAR
Mating Cycles	10
Insulator Color	NATURAL
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tabbed
Locking Feature	Flip Lock
Actuator Color	Black
Height Above Board	0.037 0.95mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0, UL94 HB
RoHS Status	ROHS3 Compliant

5035663300 Product Details

5035663300 Overview

A Surface Mount, Right Angle mounting type is specified for the device.Tape & Reel (TR) cases are used to package the product.The product is a member of the Easy-On 503566 Series.As a result of its Solder Retention feature, it possesses a great deal of power.It operates at an operating temperature of -40°C~85°C.
