Name: XF2R18154A
Brand: Omron Electronics Inc-EMC Div
SKU: XF2R18154A
Availability: InStock

new-10%

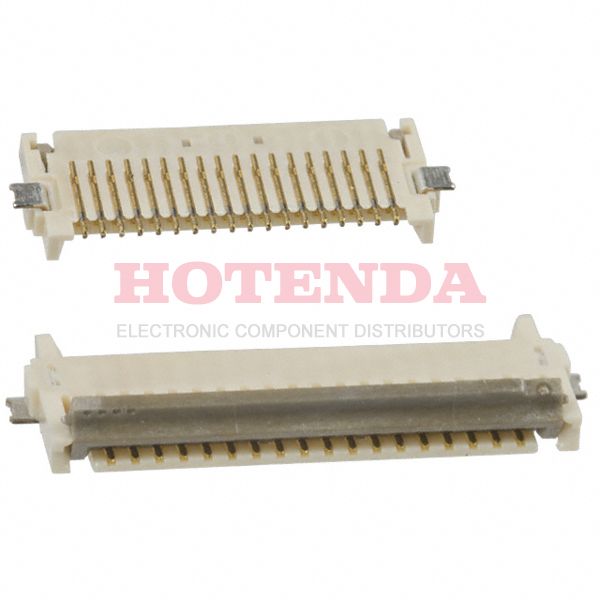

XF2R18154A

Manufacturer part number:XF2R18154A

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2R18154A datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2R18154A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2007
Series	XF2R
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Number of Positions	18
Max Operating Temperature	85°C
Min Operating Temperature	-30°C
Number of Rows	1
Voltage - Rated	50V
Current Rating (Amps)	0.3A
Pitch	0.020 0.50mm
Orientation	Right Angle
Current Rating	300mA
Contact Finish	Gold
Lead Pitch	500μm
Number of Contacts	18
Housing Color	Natural
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tabbed
Locking Feature	Rotary Lock, Backlock
Actuator Color	Brown
Height	5.5mm
Length	11mm
Width	900μm
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.12mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

XF2R18154A Product Details

XF2R18154A Overview

This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.XF2R Series product.The ideal temperature for using it is below 85°C.A minimum operating temperature of -30°C is required for this device.Several benefits come from the Solder Retention feature.Surface Mount is the mounting point for the part.-30°C~85°C Operating Temperature is the default.
