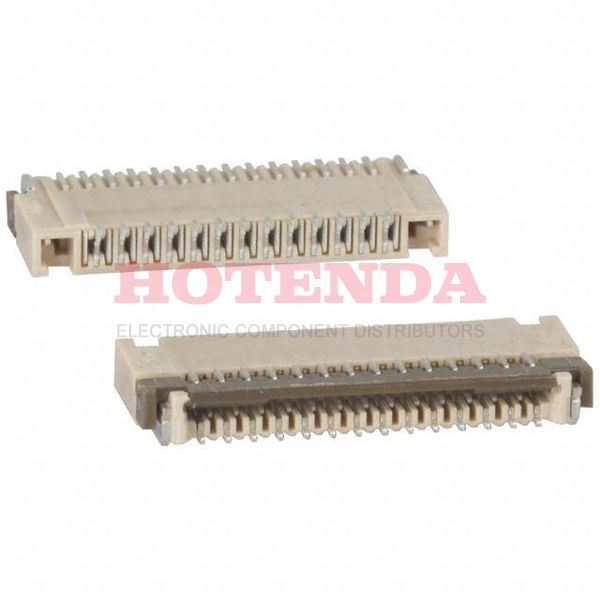

Name: 0548092798
Brand: Molex
SKU: 0548092798
Availability: InStock

new-10%

0548092798

Manufacturer part number:0548092798

Manufacturer:Molex

Description:0548092798 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0548092798 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-20°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 54809
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	27
Voltage - Rated	50V
Current Rating (Amps)	0.3A
Pitch	0.012 0.30mm
Contact Finish	Tin Bismuth
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Height Above Board	0.051 1.30mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0548092798 Product Details

0548092798 Overview

This device has a mounting type of Surface Mount, Right Angle.An orange Tape & Reel (TR) case is used to package the product.Among the products in the Easy-On 54809 Series, it is one of the most popular.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.Device runs in -20°C~85°C operating temperature.
