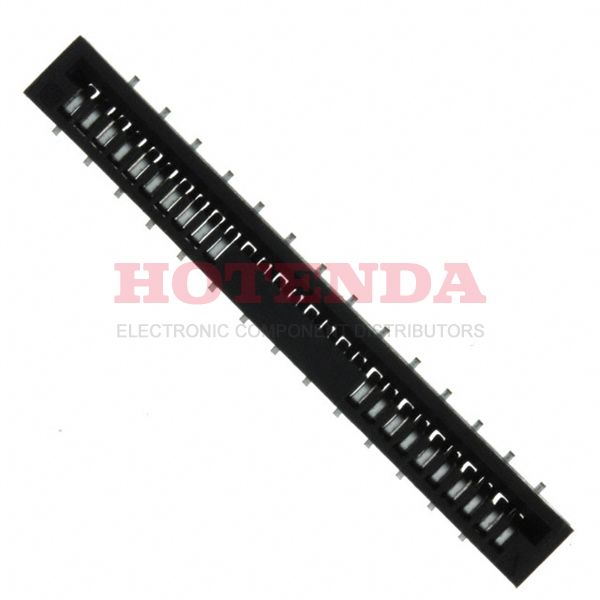

Name: HFW28S-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: HFW28S-2STE1LF
Availability: InStock

new-10%

HFW28S-2STE1LF

Manufacturer part number:HFW28S-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:HFW28S-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:HFW28S-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Published	2008
Series	HFW
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	28
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	1
Voltage - Rated	100V
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Orientation	Straight
Depth	4.5mm
Current Rating	1A
Contact Finish	Tin
Voltage - Rated AC	100V
Number of Contacts	28
Housing Color	Black
Contact Resistance	30mOhm
Insulation Resistance	500MOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Max Voltage Rating (DC)	100V
Mating Cycles	30
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight, Tapered
Contact Location	Bottom
Length	31mm
Width	3.6mm
Height Above Board	0.209 5.30mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

HFW28S-2STE1LF Product Details

HFW28S-2STE1LF Overview

This device's mounting type is Surface Mount.This product is packaged in a case marked Tape & Reel (TR).This product is from the HFW Series.Use it when the temperature is below 85°C.A minimum temperature of -55°C must be maintained for the operation of this device.There is a Surface Mount mount on the part.-55°C~85°C Operating Temperature is the default.
