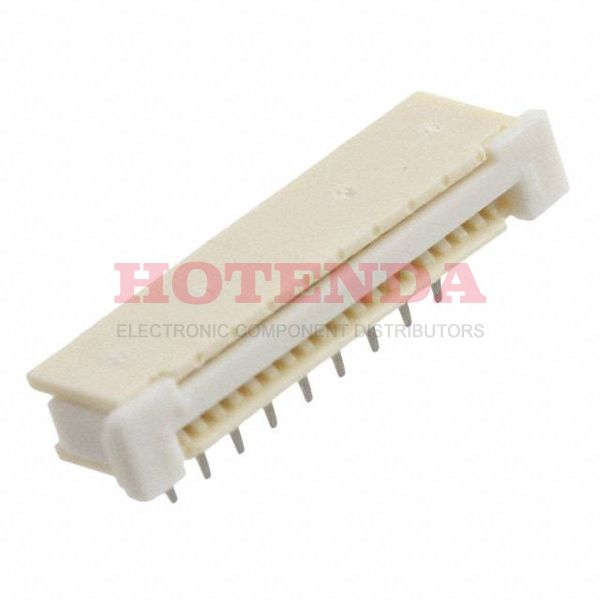

Name: 0520431819
Brand: Molex
SKU: 0520431819
Availability: InStock

new-10%

0520431819

Manufacturer part number:0520431819

Manufacturer:Molex

Description:0520431819 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0520431819 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Housing Material	Polyamide (PA66), Nylon 6/6
Actuator Material	Polyester
Operating Temperature	-20°C~80°C
Packaging	Tray
Series	52043
JESD-609 Code	e6
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin
ECCN Code	EAR99
Number of Positions	18
Number of Rows	1
Gender	Female
Voltage - Rated	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	18
Orientation	Right Angle
Current Rating	500mA
Contact Finish	Tin Bismuth
UL Flammability Code	94V-0
Body/Shell Style	RECEPTACLE
Number of Circuits	17
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Slide Lock
Contact Location	Bottom
Height Above Board	0.165 4.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

0520431819 Product Details

0520431819 Overview

Through Hole, Right Angle is the mounting type for the device.In order to package the product, a Tray case is used.This product is in the 52043 Series.In many ways, it is more powerful due to its Zero Insertion Force (ZIF) feature.By Through Hole it's mounted.A total of 17 circuits are present in the part.Operating temperature is set to -20°C~80°C.
