Name: ZF5-15-02-T-WT
Brand: Samtec Inc.
SKU: ZF5-15-02-T-WT
Availability: InStock

new-10%

ZF5-15-02-T-WT

Manufacturer part number:ZF5-15-02-T-WT

Manufacturer:Samtec Inc.

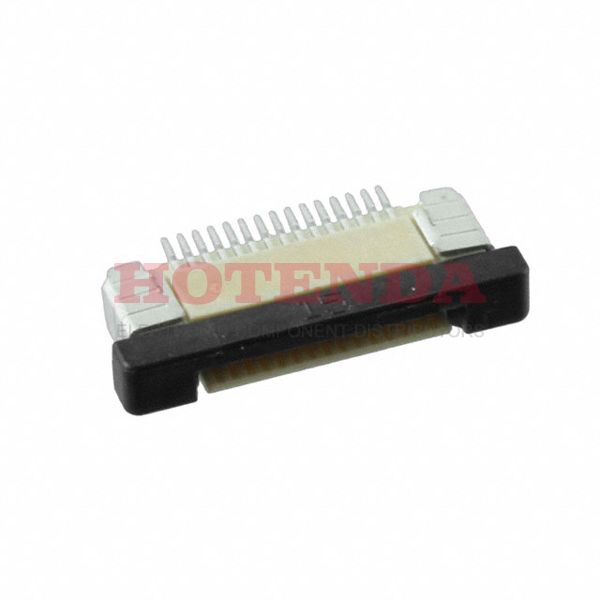

Description:ZF5-15-02-T-WT datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:ZF5-15-02-T-WT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~105°C
Packaging	Tube
Published	2006
Series	ZF5
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	15
Number of Rows	1
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	15
Orientation	Right Angle
Reference Standard	UL
Contact Finish	Tin
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.08 inch
Contact Gender	FEMALE
Housing Color	Natural
Contact Style	BELLOWED TYPE
Insulation Resistance	5000000000Ohm
Body/Shell Style	SOCKET
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Flat Flex Type	FFC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight
Locking Feature	Slide Lock
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

ZF5-15-02-T-WT Product Details

ZF5-15-02-T-WT Overview

Mounting type is Surface Mount, Right Angle.The product is packaged in a Tube case.Among the products in the ZF5 Series, it is one of the most popular.There are a number of advantages to its Solder Retention, Zero Insertion Force (ZIF) feature.Surface Mount represents the mounting point for the part.In this case, the device runs at -55°C~105°C Operating Temperature.
