Name: FH26-27S-0.3SHW(10)
Brand: Hirose Electric Co Ltd
SKU: FH26-27S-0.3SHW(10)
Availability: InStock

new-10%

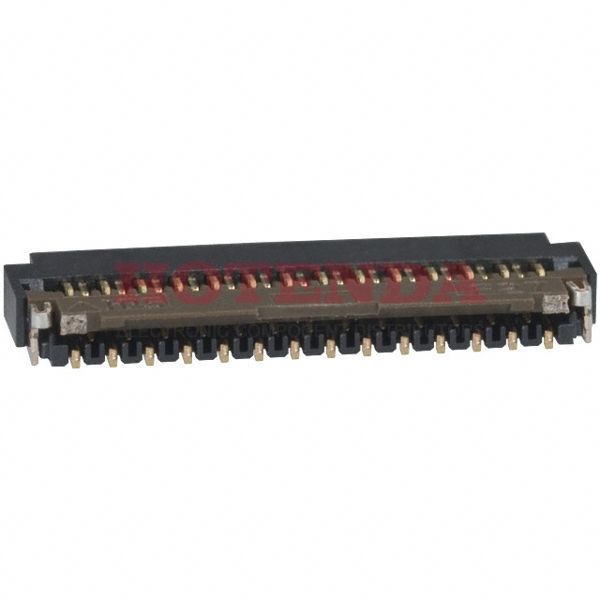

FH26-27S-0.3SHW(10)

Manufacturer part number:FH26-27S-0.3SHW(10)

Manufacturer:Hirose Electric Co Ltd

Description:FH26-27S-0.3SHW(10) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH26-27S-0.3SHW(10) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Polyamide (PA), Nylon
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH26
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	27
Number of Rows	2
Voltage - Rated	30V
Additional Feature	LOW PROFILE
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	27
Reach Compliance Code	unknown
Current Rating	200mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Insulation Resistance	50MOhm
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH26-27S-0.3SHW(10) Product Details

FH26-27S-0.3SHW(10) Overview

This device is mounted in the Surface Mount, Right Angle position.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is in the FH26 Series.Then there's LOW PROFILE, for example.This feature renders it more powerful in a number of ways because of its Zero Insertion Force (ZIF) feature.This part is mounted by Surface Mount. This device runs at -55°C~85°C operating temperature.
