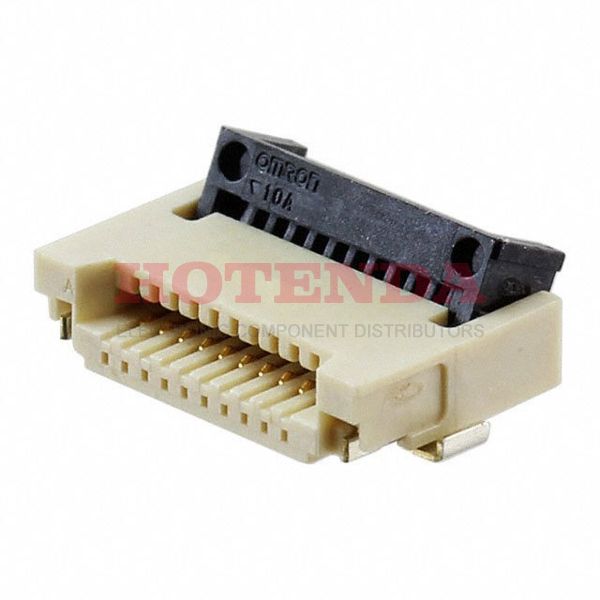

Name: XF3M10151BR100
Brand: Omron Electronics Inc-EMC Div
SKU: XF3M10151BR100
Availability: InStock

new-10%

XF3M10151BR100

Manufacturer part number:XF3M10151BR100

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF3M10151BR100 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF3M10151BR100 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Bulk
Published	2009
Series	XF3M
Feature	Solder Retention
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	10
Voltage - Rated	50V
HTS Code	8536.69.40.51
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Reach Compliance Code	unknown
Contact Finish	Gold
Housing Color	Natural
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Contact Finish Thickness	Flash
Height Above Board	0.079 2.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

XF3M10151BR100 Product Details

XF3M10151BR100 Overview

Currently, it is packaged in FFC/FPC CONNECTOR.Mounting type Surface Mount, Right Angle is selected for the device.To package the product, a Bulk case is used.Among the products in the XF3M Series, it is one of the most popular.A number of benefits can be derived from the Solder Retention feature of this application.Device runs at -30°C~85°C Operating Temperature.
