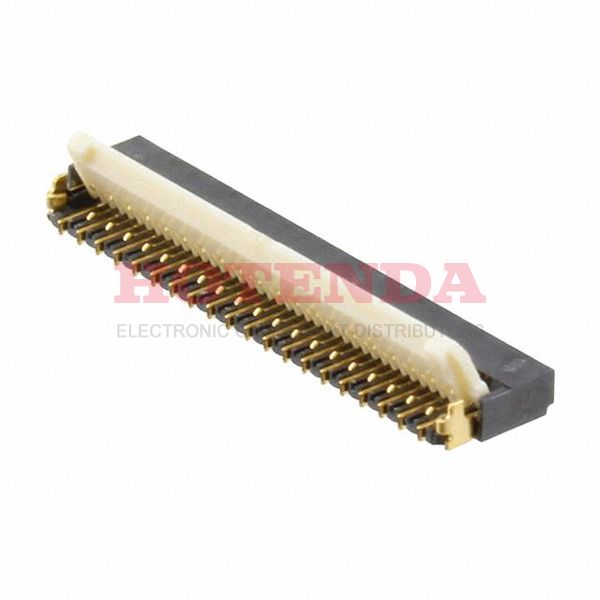

Name: 3-2041390-9
Brand: TE Connectivity AMP Connectors
SKU: 3-2041390-9
Availability: InStock

new-10%

3-2041390-9

Manufacturer part number:3-2041390-9

Manufacturer:TE Connectivity AMP Connectors

Description:3-2041390-9 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from TE Connectivity AMP Connectors stock available on our website

Case Package:SOT-23

Datasheet:3-2041390-9 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
PCB Mounting Orientation	Right Angle
Operating Temperature	-55°C~85°C
Packaging	Cut Tape (CT)
Published	2011
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	39
Max Operating Temperature	-85°C
Min Operating Temperature	-25°C
Number of Rows	2
Gender	Female
Voltage - Rated	30V
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Orientation	Right Angle
Shielding	Unshielded
Depth	3.5mm
Current Rating	200mA
Contact Finish	Gold
Housing Color	Black
ELV	Compliant
Max Voltage Rating (AC)	30V
Contact Current Rating	200mA
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Natural
Contact Location	Bottom
Length	13.2mm
Width	3.5mm
Contact Finish Thickness	Flash
Plating Thickness	25 nm
Height Above Board	0.039 1.00mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

3-2041390-9 Product Details

3-2041390-9 Overview

Surface Mount, Right Angle is the type of mounting for the device.We pack the product in a Cut Tape (CT) case.If it is to be used, it should be kept at a temperature below -85°C.Temperature must be -25°C to operate this device.In many ways, its Zero Insertion Force (ZIF) feature makes it more powerful.Surface Mount is the mounting point for the part.Operating temperature is -55°C~85°C.
