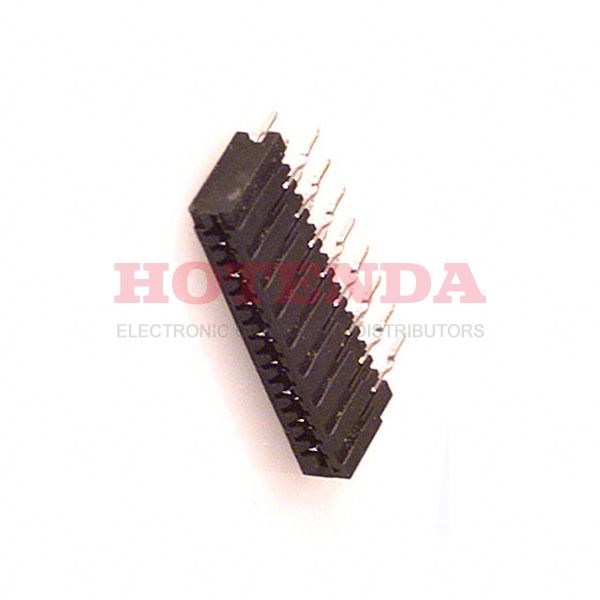

FH21-16S-1DSA

Manufacturer part number:FH21-16S-1DSA

Manufacturer:Hirose Electric Co Ltd

Description:FH21-16S-1DSA datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH21-16S-1DSA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Solder Plating
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-30°C~70°C
Packaging	Bulk
Published	2001
Series	FH21
JESD-609 Code	e0
Feature	Low Insertion Force (LIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Kinked Pin
Connector Type	FFC/FPC CONNECTOR
Number of Positions	16
Number of Rows	1
Voltage - Rated	50V
Additional Feature	STAGGERED CONFIGURATION, ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	16
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Solder Plating
Reliability	COMMERCIAL
Body Length or Diameter	0.709 inch
Number Of PCB Rows	2
Lead Pitch	1mm
PCB Contact Pattern	STAGGERED
Mating Information	RIBBON CABLE
Contact Gender	MALE
UL Flammability Code	94V-0
Housing Color	Black
Body Depth	0.228 inch
Contact Style	BELLOWED TYPE
Contact Resistance	40mOhm
Insulation Resistance	500000000Ohm
PCB Contact Row Spacing	2.0066 mm
Contact Pattern	RECTANGULAR
Insertion Force-Max	LIF N
Withdrawl Force-Min	LIF N
Mating Cycles	10
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 2 Sided
Cable End Type	Straight
Length - Termination	0.114 inch
Height Above Board	0.228 5.80mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH21-16S-1DSA Product Details

FH21-16S-1DSA Overview

A FFC/FPC CONNECTOR package is included with it.Through Hole is the mounting type of the device.An Bulk case is utilized for packaging the product.As a product of the FH21 Series, it can be found in this category.There are also other features such as STAGGERED CONFIGURATION, ZIF, to name only a few.In many ways, Low Insertion Force (LIF) makes it more powerful.Through Hole is used to mount the part.In this case, the device operates at -30°C~70°C Operating Temperature.
