Name: XF2L-0825-1A
Brand: Omron Electronics Inc-EMC Div
SKU: XF2L-0825-1A
Availability: InStock

new-10%

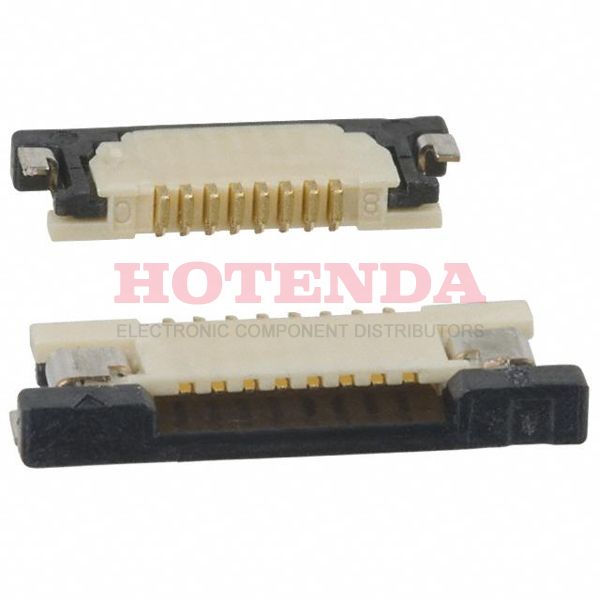

XF2L-0825-1A

Manufacturer part number:XF2L-0825-1A

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2L-0825-1A datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2L-0825-1A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2004
Series	XF2L
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	8
Number of Rows	1
Gender	Receptacle
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
Voltage - Rated DC	50V
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	8
Orientation	Right Angle
Depth	3.45mm
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.047 inch
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	BELLOWED TYPE
Contact Resistance	30mOhm
Insulation Resistance	100MOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Dielectric Withstanding Voltage	250VAC V
Max Voltage Rating (DC)	5.05kV
Contact Pattern	RECTANGULAR
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight
Locking Feature	Slide Lock
Actuator Color	Black
Contact Location	Top
Length	8.9mm
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.047 1.20mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

XF2L-0825-1A Product Details

XF2L-0825-1A Overview

The mounting type of the device is Surface Mount, Right Angle.This product is packaged in a case marked Tape & Reel (TR).The product is a part of the XF2L Series.Further, there are features such as LOW PROFILE, ZIF, to name only a few.Several benefits come from the Zero Insertion Force (ZIF) feature.By Surface Mount it's mounted.Running in -30°C~85°C Operating Temperature.
