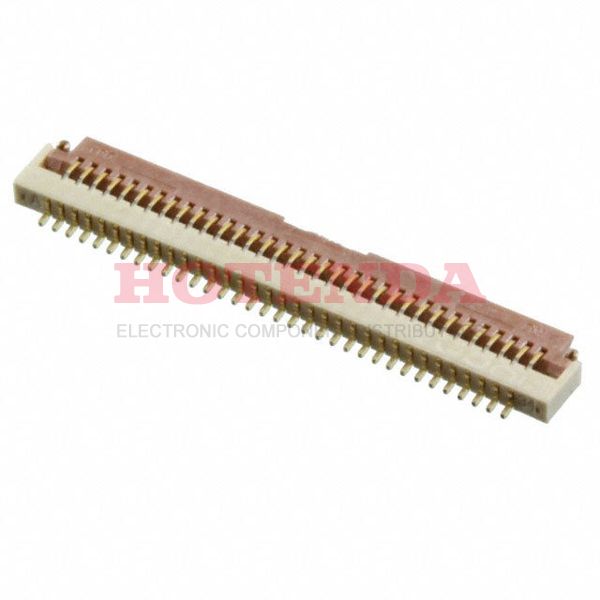

Name: FH19C-34S-0.5SH(99)
Brand: Hirose Electric Co Ltd
SKU: FH19C-34S-0.5SH(99)
Availability: InStock

new-10%

FH19C-34S-0.5SH(99)

Manufacturer part number:FH19C-34S-0.5SH(99)

Manufacturer:Hirose Electric Co Ltd

Description:FH19C-34S-0.5SH(99) datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH19C-34S-0.5SH(99) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	FH19C
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	34
Number of Rows	1
Voltage - Rated	50V
Subcategory	Headers and Edge Type Connectors
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	34
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.748 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.035 inch
Housing Color	Beige
Body Depth	0.138 inch
Contact Style	BELLOWED TYPE
Contact Resistance	100mOhm
Insulation Resistance	500000000Ohm
Contact Pattern	RECTANGULAR
Mating Cycles	20
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Bottom
Cable End Type	Tapered
Locking Feature	Flip Lock
Actuator Color	Brown
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

FH19C-34S-0.5SH(99) Product Details

FH19C-34S-0.5SH(99) Overview

The packaging contains FFC/FPC CONNECTOR.This device has a mounting type of Surface Mount, Right Angle.Tape & Reel (TR) cases are used to package the product.A product of the FH19C Series, it belongs to the range of products of that series.In many ways, its Solder Retention, Zero Insertion Force (ZIF) feature makes it more powerful.There is a Surface Mount mount on the part.-55°C~85°C Operating Temperature is used by the device.
