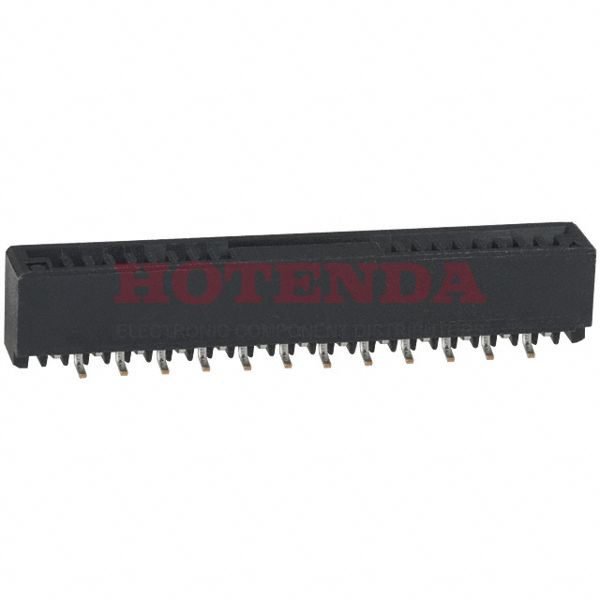

Name: HFW25S-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: HFW25S-2STE1LF
Availability: InStock

new-10%

HFW25S-2STE1LF

Manufacturer part number:HFW25S-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:HFW25S-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:HFW25S-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA6T), Nylon 6T, Glass Filled
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Series	HFW
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	25
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Number of Rows	1
Voltage - Rated	100V
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Orientation	Straight
Depth	3.6mm
Current Rating	1A
Contact Finish	Tin
Voltage - Rated AC	100V
Number of Contacts	25
Housing Color	Black
Contact Resistance	30mOhm
Insulation Resistance	500MOhm
Max Voltage Rating (AC)	100V
Wire/Cable Type	Straight
Mating Cycles	30
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Straight, Tapered
Contact Location	Bottom
Length	28mm
Width	3.6mm
Height Above Board	0.209 5.30mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

HFW25S-2STE1LF Product Details

HFW25S-2STE1LF Overview

Surface Mount is the mounting type for the device.Tape & Reel (TR) cases are used to package the product.As a product of the HFW Series, it can be found in this category.Using it at a temperature below 85°C is ideal.-55°C is the minimum temperature for this device.It is mounted by Surface Mount.In this case, the device runs at -55°C~85°C Operating Temperature.
