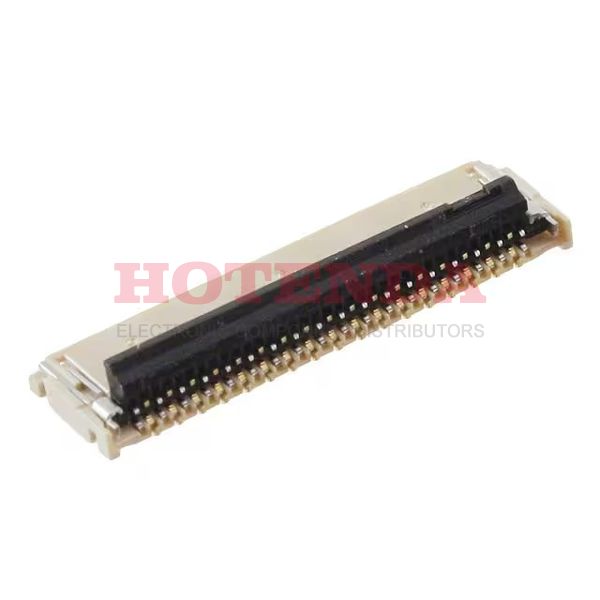

Name: 5022503591
Brand: Molex
SKU: 5022503591
Availability: InStock

new-10%

5022503591

Manufacturer part number:5022503591

Manufacturer:Molex

Description:5022503591 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:5022503591 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Option 1	LOCKING
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Board Mounting Option	FITTING NAIL
Operating Temperature	-25°C~85°C
Packaging	Tape & Reel (TR)
Published	2013
Series	BackFlip, Easy-On 502250
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	35
Number of Rows	1
Voltage - Rated	50V
Additional Feature	BACKFLIP, EASY-ON, POLARIZED
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.2A
Pitch	0.012 0.30mm
Total Number of Contacts	35
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.484 inch
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Contact Gender	FEMALE
Housing Color	Natural
Body Depth	0.139 inch
Contact Resistance	80mOhm
Insulation Resistance	50000000Ohm
Contact Pattern	RECTANGULAR
Mating Cycles	10
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Notched or Tabbed
Locking Feature	Flip Lock, Backlock
Actuator Color	Black
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

5022503591 Product Details

5022503591 Overview

Surface Mount, Right Angle is the mounting type.To package the product, we use a Tape & Reel (TR) case.There is a product in the BackFlip, Easy-On 502250 Series.Additionally, there are other features, such as BACKFLIP, EASY-ON, POLARIZED.It operates at an operating temperature of -25°C~85°C.
