Name: XF2J-2224-11A-R100
Brand: Omron Electronics Inc-EMC Div
SKU: XF2J-2224-11A-R100
Availability: InStock

new-10%

XF2J-2224-11A-R100

Manufacturer part number:XF2J-2224-11A-R100

Manufacturer:Omron Electronics Inc-EMC Div

Description:XF2J-2224-11A-R100 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2J-2224-11A-R100 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2005
Series	XF2J
JESD-609 Code	e4
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Number of Positions	22
Number of Rows	1
Gender	Receptacle
Voltage - Rated	50V
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Orientation	Straight
Current Rating	500mA
Contact Finish	Gold
Housing Color	Natural
Contact Resistance	30mOhm
Max Current Rating	500mA
Max Voltage Rating (DC)	5.05kV
Mating Cycles	30
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Locking Feature	Slide Lock
Actuator Color	Black
Length	16mm
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.163 4.15mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

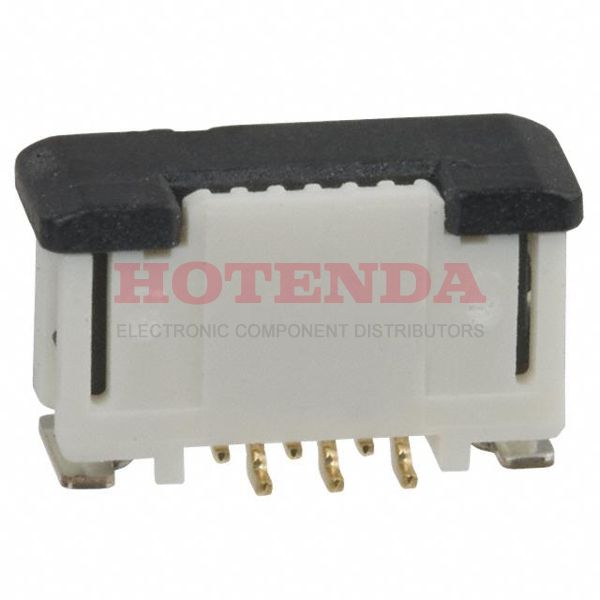

XF2J-2224-11A-R100 Product Details

XF2J-2224-11A-R100 Overview

This device has a Surface Mount mounting type.The product is packaged in a Tape & Reel (TR) case.Among the products in the XF2J Series, it is one of the most popular.This feature renders it more powerful in a number of ways because of its Zero Insertion Force (ZIF) feature.By Surface Mount it's mounted.-30°C~85°C Operating Temperature is the default.
