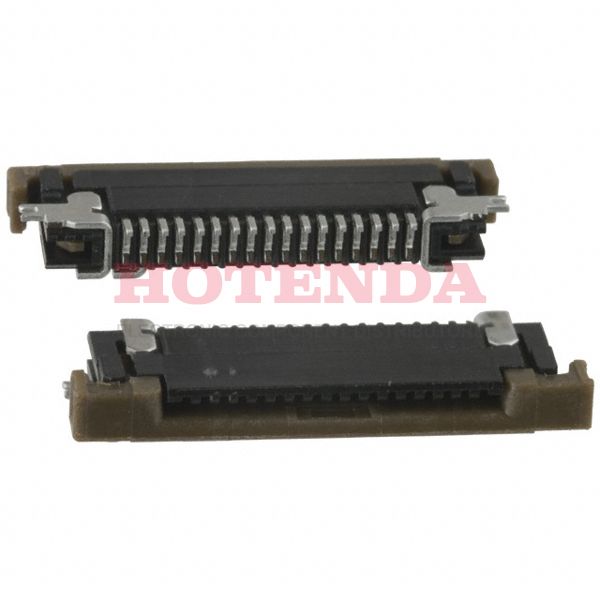

Name: SFV17R-2STE1LF
Brand: Amphenol ICC (FCI)
SKU: SFV17R-2STE1LF
Availability: InStock

new-10%

SFV17R-2STE1LF

Manufacturer part number:SFV17R-2STE1LF

Manufacturer:Amphenol ICC (FCI)

Description:SFV17R-2STE1LF datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:SFV17R-2STE1LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polyamide (PA), Nylon, Glass Filled
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature	-55°C~105°C
Packaging	Tape & Reel (TR)
Series	SFV-R
JESD-609 Code	e3
Feature	Solder Retention, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	FFC/FPC CONNECTOR
Number of Positions	17
Number of Rows	1
Voltage - Rated	50V
Additional Feature	SIDE ENTRY
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	17
Reach Compliance Code	unknown
Current Rating	500mA
Contact Finish	Tin
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Black
Insulation Resistance	100MOhm
Wire/Cable Type	Straight
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight, Tapered
Locking Feature	Slide Lock
Actuator Color	Brown
Contact Location	Top
Height Above Board	0.071 1.80mm
FFC, FCB Thickness	0.30mm 0.33mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

SFV17R-2STE1LF Product Details

SFV17R-2STE1LF Overview

The product is packaged in FFC/FPC CONNECTOR.Surface Mount, Right Angle indicates that the device is mounted.To package the product, we use a Tape & Reel (TR) case.This product is from the SFV-R Series.Additionally, there are features like SIDE ENTRY, just to name a few.Several benefits come from the Solder Retention, Zero Insertion Force (ZIF) feature.Surface Mount is the mounting point for the part.-55°C~105°C Operating Temperature is the default.
