Name: XF2U-1115-3A
Brand: Omron Electronics Inc-EMC Div
SKU: XF2U-1115-3A
Availability: InStock

new-10%

XF2U-1115-3A

Manufacturer part number:XF2U-1115-3A

Manufacturer:Omron Electronics Inc-EMC Div

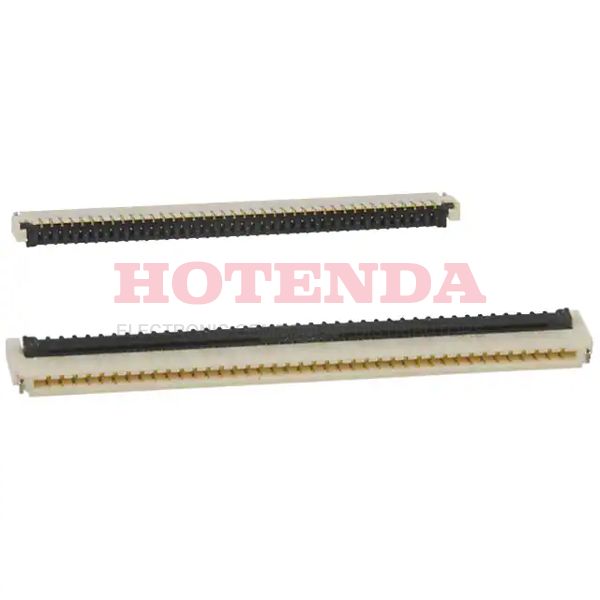

Description:XF2U-1115-3A datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Omron Electronics Inc-EMC Div stock available on our website

Case Package:SOT-23

Datasheet:XF2U-1115-3A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP), Halogen Free
Operating Temperature	-30°C~85°C
Packaging	Tape & Reel (TR)
Published	2006
Series	XF2U
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	11
Number of Rows	1
Gender	Male
Additional Feature	LOW PROFILE
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.020 0.50mm
Total Number of Contacts	11
Orientation	Right Angle
Depth	3.5mm
Current Rating	500mA
Reference Standard	UL
Contact Finish	Gold
Voltage - Rated AC	50V
Reliability	COMMERCIAL
Number Of PCB Rows	1
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.035 inch
UL Flammability Code	94V-0
Housing Color	Natural
Contact Style	BELLOWED TYPE
Contact Resistance	60mOhm
Max Voltage Rating (AC)	50V
Max Current Rating	500mA
Dielectric Withstanding Voltage	250VAC V
Max Voltage Rating (DC)	5.05kV
Contact Pattern	RECTANGULAR
Mating Cycles	20
Flat Flex Type	FPC
Connector/Contact Type	Contacts, Top and Bottom
Cable End Type	Tapered
Locking Feature	Rotary Lock, Backlock
Actuator Color	Black
Length	7.4mm
Contact Finish Thickness	5.90μin 0.150μm
Height Above Board	0.035 0.88mm
FFC, FCB Thickness	0.20mm
Material Flammability Rating	UL94 V-0
REACH SVHC	Unknown
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

XF2U-1115-3A Product Details

XF2U-1115-3A Overview

There is a mounting type of Surface Mount, Right Angle for this device.Packaging is performed using a Tape & Reel (TR) case.XF2U Series product.Among other features are LOW PROFILE, to name only a few.It is mounted by Surface Mount.-30°C~85°C Operating Temperature is the default operating temperature for the device.
