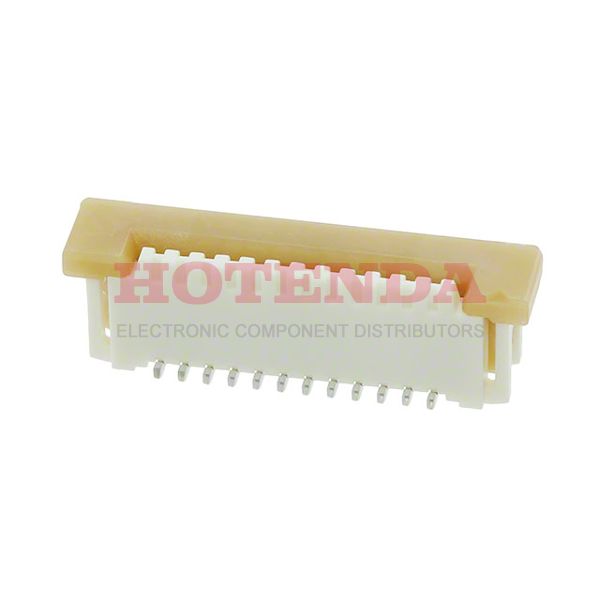

Name: 0526101271
Brand: Molex
SKU: 0526101271
Availability: InStock

new-10%

0526101271

Manufacturer part number:0526101271

Manufacturer:Molex

Description:0526101271 datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Molex stock available on our website

Case Package:SOT-23

Datasheet:0526101271 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Housing Material	Polyamide (PA46), Nylon 4/6
Mounting Option 1	LOCKING
Actuator Material	Polyphenylene Sulfide (PPS)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Series	Easy-On 52610
Feature	Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	12
Number of Rows	1
Voltage - Rated	125V
HTS Code	8536.69.40.51
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	1A
Pitch	0.039 1.00mm
Total Number of Contacts	12
Reference Standard	UL, CSA
Contact Finish	Tin Bismuth
Reliability	COMMERCIAL
Body Length or Diameter	0.732 inch
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.142 inch
Contact Gender	FEMALE
UL Flammability Code	94V-0
Body Depth	0.226 inch
Contact Style	BELLOWED TYPE
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Mating Cycles	30
Connector/Contact Type	Contacts, Vertical - 1 Sided
Cable End Type	Tapered
Locking Feature	Slide Lock
Contact Finish Thickness	39.4μin 1.00μm
Plating Thickness	39μin
Height Above Board	0.226 5.74mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

0526101271 Product Details

0526101271 Overview

You'll get FFC/FPC CONNECTOR packages.This device has a Surface Mount mounting type.It is necessary to use a Tape & Reel (TR) case for packaging the product.This product is part of the Easy-On 52610 Series.A number of aspects of its Zero Insertion Force (ZIF) feature make it more powerful.-40°C~85°C Operating Temperature is the default operating temperature for the device.
