Name: FH10A-8S-1SHB
Brand: Hirose Electric Co Ltd
SKU: FH10A-8S-1SHB
Availability: InStock

new-10%

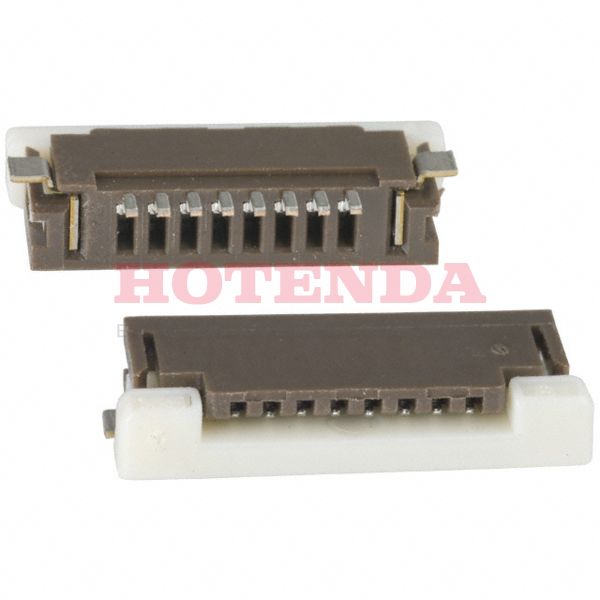

FH10A-8S-1SHB

Manufacturer part number:FH10A-8S-1SHB

Manufacturer:Hirose Electric Co Ltd

Description:FH10A-8S-1SHB datasheet pdf and FFC, FPC (Flat Flexible) Connectors product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FH10A-8S-1SHB Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Contact Plating	Solder Plating
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C~85°C
Packaging	Tube
Published	2001
Series	FH10A
JESD-609 Code	e3
Feature	Board Guide, Zero Insertion Force (ZIF)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	FFC/FPC CONNECTOR
Number of Positions	8
Number of Rows	1
Voltage - Rated	50V
Additional Feature	LOW PROFILE, ZIF
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	0.5A
Pitch	0.039 1.00mm
Total Number of Contacts	8
Reach Compliance Code	unknown
Current Rating	500mA
Reference Standard	UL
Contact Finish	Solder Plating
Reliability	COMMERCIAL
Body Length or Diameter	0.559 inch
Number Of PCB Rows	1
Lead Pitch	1mm
PCB Contact Pattern	RECTANGULAR
Mating Information	RIBBON CABLE
Contact Gender	FEMALE
UL Flammability Code	94V-0
Housing Color	Natural
Body Depth	0.26 inch
Contact Style	BELLOWED TYPE
Contact Resistance	25mOhm
Insulation Resistance	500000000Ohm
Dielectric Withstanding Voltage	500VAC V
Durability	30 Cycles
Contact Pattern	RECTANGULAR
Insertion Force-Max	ZIF N
Withdrawl Force-Min	ZIF N
Flat Flex Type	FFC, FPC
Connector/Contact Type	Contacts, Top
Cable End Type	Straight
Locking Feature	Slide Lock
Height Above Board	0.118 3.00mm
FFC, FCB Thickness	0.30mm
Material Flammability Rating	UL94 V-0
RoHS Status	Non-RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Contains Lead

FH10A-8S-1SHB Product Details

FH10A-8S-1SHB Overview

Currently, it is packaged in FFC/FPC CONNECTOR.It's mounted Surface Mount, Right Angle.The product is packaged in a Tube case.This product is from the FH10A Series.Furthermore, there are other features available, such as LOW PROFILE, ZIF, to name a few.This feature makes it more powerful in a number of ways due to its Board Guide, Zero Insertion Force (ZIF) feature.There's a Surface Mount on the part.Device runs at -55°C~85°C Operating Temperature.
