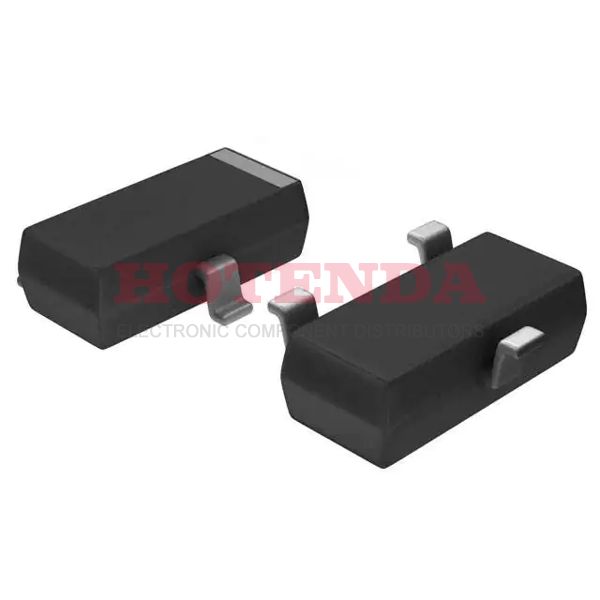

Name: SI2303BDS-T1-GE3
Brand: Vishay Siliconix
SKU: SI2303BDS-T1-GE3
Availability: InStock

new-10%

SI2303BDS-T1-GE3

Manufacturer part number:SI2303BDS-T1-GE3

Manufacturer:Vishay Siliconix

Description:MOSFET P-CH 30V 1.49A SOT23-3

Case Package:SOT-23

Datasheet:SI2303BDS-T1-GE3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2013
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	Other Transistors
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	30
Pin Count	3
Number of Elements	1
Power Dissipation-Max	700mW Ta
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	700mW
Turn On Delay Time	55 ns
FET Type	P-Channel
Rds On (Max) @ Id, Vgs	200m Ω @ 1.7A, 10V
Vgs(th) (Max) @ Id	3V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	180pF @ 15V
Current - Continuous Drain (Id) @ 25°C	1.49A Ta
Gate Charge (Qg) (Max) @ Vgs	10nC @ 10V
Rise Time	40ns
Drive Voltage (Max Rds On,Min Rds On)	4.5V 10V
Vgs (Max)	±20V
Fall Time (Typ)	40 ns
Turn-Off Delay Time	10 ns
Continuous Drain Current (ID)	-1.49A
Threshold Voltage	-3V
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.2Ohm
Drain to Source Breakdown Voltage	30V
Nominal Vgs	-3 V
Radiation Hardening	No
REACH SVHC	Unknown
RoHS Status	ROHS3 Compliant

About SI2303BDS-T1-GE3

The SI2303BDS-T1-GE3 from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET P-CH 30V 1.49A SOT23-3.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SI2303BDS-T1-GE3, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
