Name: IRFPS43N50K
Brand: Vishay Siliconix
SKU: IRFPS43N50K
Availability: InStock

new-10%

IRFPS43N50K

Manufacturer part number:IRFPS43N50K

Manufacturer:Vishay Siliconix

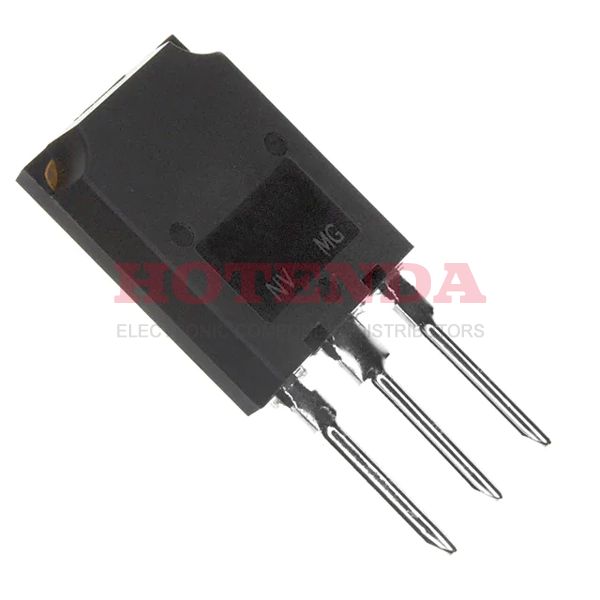

Description:Trans MOSFET N-CH 500V 47A 3-Pin Super-247

Case Package:SOT-23

Datasheet:IRFPS43N50K Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-274AA
Number of Pins	3
Supplier Device Package	SUPER-247™ (TO-274AA)
Weight	38.000013g
Operating Temperature	-55°C~150°C TJ
Packaging	Tube
Published	2016
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-55°C
Technology	MOSFET (Metal Oxide)
Number of Elements	1
Number of Channels	1
Power Dissipation-Max	540W Tc
Element Configuration	Single
Power Dissipation	540W
Turn On Delay Time	25 ns
FET Type	N-Channel
Rds On (Max) @ Id, Vgs	90mOhm @ 28A, 10V
Vgs(th) (Max) @ Id	5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	8310pF @ 25V
Current - Continuous Drain (Id) @ 25°C	47A Tc
Gate Charge (Qg) (Max) @ Vgs	350nC @ 10V
Rise Time	140ns
Drain to Source Voltage (Vdss)	500V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±30V
Fall Time (Typ)	74 ns
Turn-Off Delay Time	55 ns
Continuous Drain Current (ID)	47A
Gate to Source Voltage (Vgs)	30V
Input Capacitance	8.31nF
Drain to Source Resistance	90mOhm
Rds On Max	90 mΩ
Height	20.8mm
Length	16.1mm
Width	5.3mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

About IRFPS43N50K

The IRFPS43N50K from Vishay Siliconix is a high-performance microcontroller designed for a wide range of embedded applications. This component features Trans MOSFET N-CH 500V 47A 3-Pin Super-247.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IRFPS43N50K, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
