Name: NTD18N06
Brand: ON Semiconductor
SKU: NTD18N06
Availability: InStock

new-10%

NTD18N06

Manufacturer part number:NTD18N06

Manufacturer:ON Semiconductor

Description:NTD18N06 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from ON Semiconductor stock available on our website

Case Package:SOT-23

Datasheet:NTD18N06 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount

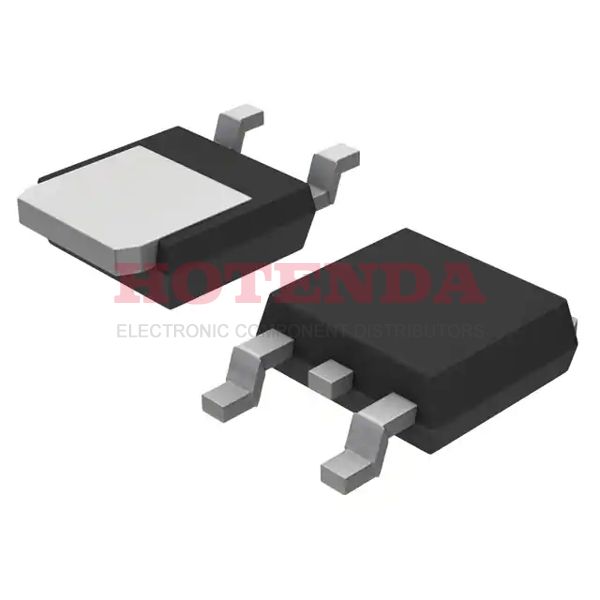

Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2006
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8541.29.00.95
Subcategory	FET General Purpose Power
Voltage - Rated DC	60V
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	235
Reach Compliance Code	not_compliant
Current Rating	18A
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Number of Elements	1
Power Dissipation-Max	2.1W Ta 55W Tj
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	55W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	60m Ω @ 9A, 10V
Vgs(th) (Max) @ Id	4V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	710pF @ 25V
Current - Continuous Drain (Id) @ 25°C	18A Ta
Gate Charge (Qg) (Max) @ Vgs	30nC @ 10V
Rise Time	23ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	20 ns
Turn-Off Delay Time	19 ns
Continuous Drain Current (ID)	18A
Gate to Source Voltage (Vgs)	20V
Drain-source On Resistance-Max	0.06Ohm
Drain to Source Breakdown Voltage	60V
Pulsed Drain Current-Max (IDM)	54A
Avalanche Energy Rating (Eas)	72 mJ
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

NTD18N06 Product Details

NTD18N06 Description

NTD18N06, an On Semiconductor product. It falls within the category of electronic components, ICs. It is used in a variety of industries, including automotive, body electronics & lighting, industrial, non-car & non-light truck transportation, and personal electronics gaming. And the primary criteria for this component are: MOSFETs - Power and Small Signal N-Channel 60V 18A No-Cancel/No-Return.It is also environmentally friendly and RoHS compliant (lead free).
