Name: IPP80CN10NGHKSA1
Brand: Infineon Technologies
SKU: IPP80CN10NGHKSA1
Availability: InStock

new-10%

IPP80CN10NGHKSA1

Manufacturer part number:IPP80CN10NGHKSA1

Manufacturer:Infineon Technologies

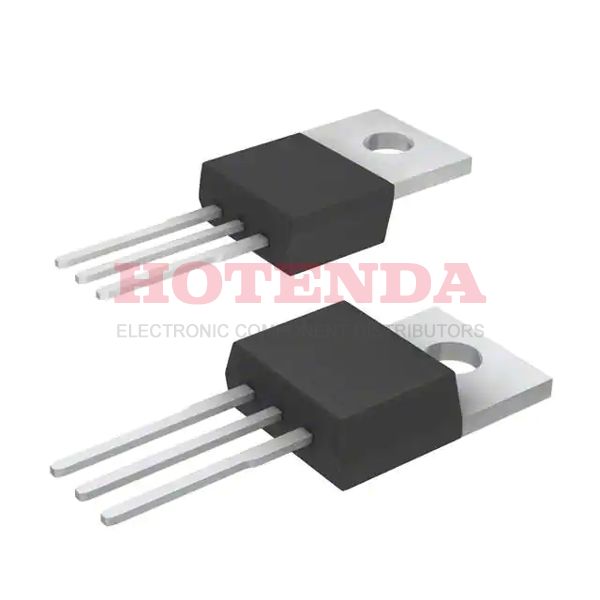

Description:Trans MOSFET N-CH 100V 13A 3-Pin(3+Tab) TO-220

Case Package:SOT-23

Datasheet:IPP80CN10NGHKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-220-3
Surface Mount	NO
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2008
Series	OptiMOS™
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Technology	MOSFET (Metal Oxide)
Terminal Position	SINGLE
Reach Compliance Code	compliant
JESD-30 Code	R-PSFM-T3
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	31W Tc
Operating Mode	ENHANCEMENT MODE
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	80m Ω @ 13A, 10V
Vgs(th) (Max) @ Id	4V @ 12μA
Input Capacitance (Ciss) (Max) @ Vds	716pF @ 50V
Current - Continuous Drain (Id) @ 25°C	13A Tc
Gate Charge (Qg) (Max) @ Vgs	11nC @ 10V
Drain to Source Voltage (Vdss)	100V
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
JEDEC-95 Code	TO-220AB
Drain Current-Max (Abs) (ID)	13A
Drain-source On Resistance-Max	0.08Ohm
Pulsed Drain Current-Max (IDM)	52A
DS Breakdown Voltage-Min	100V
Avalanche Energy Rating (Eas)	17 mJ
