Name: ZXMN2A01E6TC
Brand: Diodes Incorporated
SKU: ZXMN2A01E6TC
Availability: InStock

new-10%

ZXMN2A01E6TC

Manufacturer part number:ZXMN2A01E6TC

Manufacturer:Diodes Incorporated

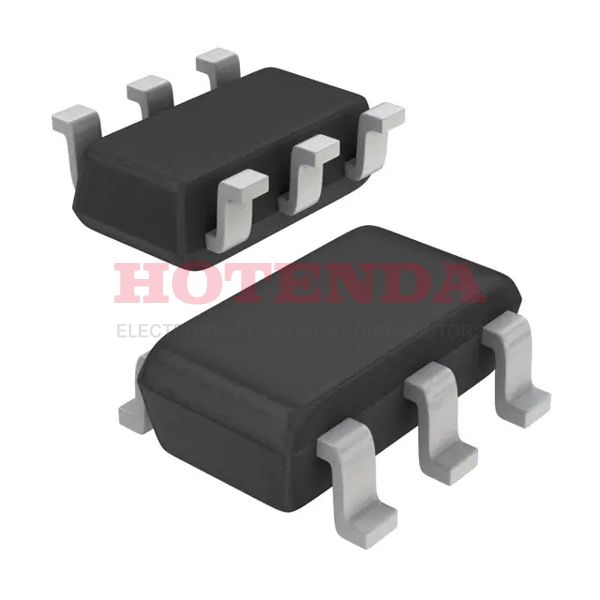

Description:MOSFET N-CH 20V 2.5A SOT23-6

Case Package:SOT-23

Datasheet:ZXMN2A01E6TC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-23-6
Surface Mount	YES
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	MATTE TIN
Additional Feature	LOW THRESHOLD
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Reach Compliance Code	compliant
[email protected] Reflow Temperature-Max (s)	40
Pin Count	6
JESD-30 Code	R-PDSO-G6
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	1.1W Ta
Operating Mode	ENHANCEMENT MODE
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	120m Ω @ 4A, 4.5V
Vgs(th) (Max) @ Id	700mV @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	303pF @ 15V
Current - Continuous Drain (Id) @ 25°C	2.5A Ta
Gate Charge (Qg) (Max) @ Vgs	3nC @ 4.5V
Drain to Source Voltage (Vdss)	20V
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4.5V
Vgs (Max)	±12V
Drain Current-Max (Abs) (ID)	2.5A
Drain-source On Resistance-Max	0.12Ohm
DS Breakdown Voltage-Min	20V
RoHS Status	RoHS Compliant
