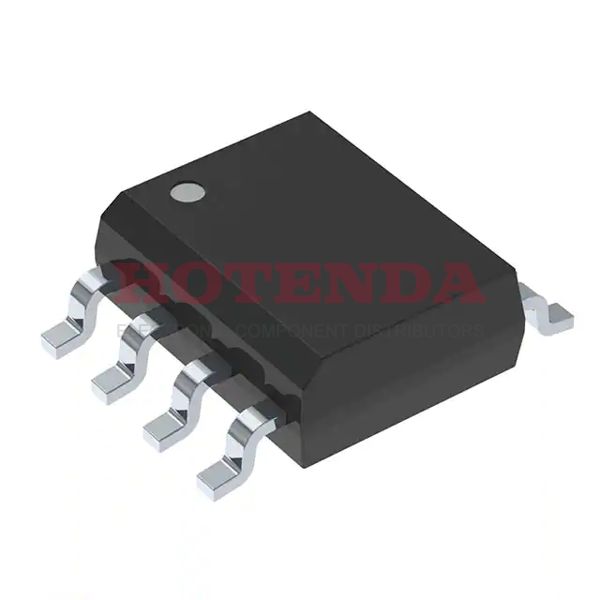

IRF9410PBF datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website
SOT-23
IRF9410PBF Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.154, 3.90mm Width)
Surface Mount
YES
Transistor Element Material
SILICON
Operating Temperature
-55°C~150°C TJ
Packaging
Tube
Published
1997
Series
HEXFET®
JESD-609 Code
e3
Part Status
Discontinued
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
8
ECCN Code
EAR99
Terminal Finish
Matte Tin (Sn)
Additional Feature
AVALANCHE RATED, ULTRA LOW RESISTANCE
HTS Code
8541.29.00.95
Technology
MOSFET (Metal Oxide)
Terminal Position
DUAL
Terminal Form
GULL WING
Peak Reflow Temperature (Cel)
NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-PDSO-G8
Number of Elements
1
Configuration
SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max
2.5W Ta
Operating Mode
ENHANCEMENT MODE
FET Type
N-Channel
Transistor Application
SWITCHING
Rds On (Max) @ Id, Vgs
30m Ω @ 7A, 10V
Vgs(th) (Max) @ Id
1V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds
550pF @ 25V
Current - Continuous Drain (Id) @ 25°C
7A Ta
Gate Charge (Qg) (Max) @ Vgs
27nC @ 10V
Drain to Source Voltage (Vdss)
30V
Drive Voltage (Max Rds On,Min Rds On)
4.5V 10V
Vgs (Max)
±20V
JEDEC-95 Code
MS-012AA
Drain Current-Max (Abs) (ID)
7A
Drain-source On Resistance-Max
0.03Ohm
Pulsed Drain Current-Max (IDM)
37A
DS Breakdown Voltage-Min
30V
Avalanche Energy Rating (Eas)
70 mJ
RoHS Status
ROHS3 Compliant
In-Stock:1473 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.75000
$0.75
10
$0.66000
$6.6
100
$0.50600
$50.6
500
$0.40000
$200
IRF9410PBF Product Details
IRF9410PBF Description
IRF9410PBF is an N-channel Power MOSFET transistor from the manufacturer Infineon Technologies with a drain to source voltage of 30V. The operating temperature of the IRF9410PBF is -55??C~150??C TJ and its maximum power dissipation is 2.5W Ta. IRF9410PBF has 8 pins and it is available in Tube packaging way.
IRF9410PBF Features
Drain Current-Max (Abs) (ID): 7A
Pulsed Drain Current-Max (IDM): 37A
Avalanche Energy Rating (Eas): 70 mJ
Drain to Source Voltage (Vdss): 30V
IRF9410PBF Applications
Power Management
Consumer Electronics
Portable Devices
Industrial
