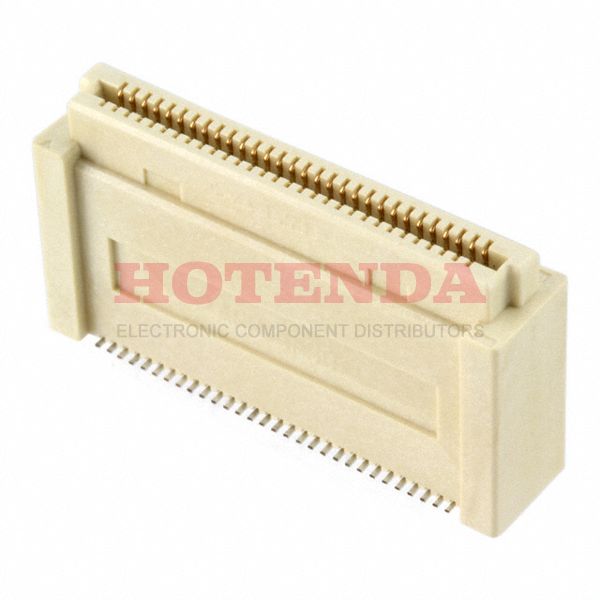

Name: 1735482-2
Brand: TE Connectivity AMP Connectors
SKU: 1735482-2
Price: 9.82000 USD
Availability: InStock

new

1735482-2

Manufacturer part number:1735482-2

Manufacturer:TE Connectivity AMP Connectors

Description:Receptacle, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 60 Positions Free Height (FH) Gold SMD/SMT

Case Package:SOT-23

Datasheet:1735482-2 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Lifecycle Status	ACTIVE (Last Updated: 3 days ago)
Mounting Type	Surface Mount
Housing Material	Polymer
PCB Mount Retention	Without
Packaging	Tape & Reel (TR)
Published	2009
Series	Free Height (FH)
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
ECCN Code	EAR99
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	60
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Number of Rows	2
Gender	Female
HTS Code	8536.69.40.40
Pitch	0.031 0.80mm
Orientation	Vertical
Contact Finish	Gold
Housing Color	Natural
Operating Supply Voltage	100V
Insulation Resistance	2MOhm
Row Spacing	2.4 mm
ELV	Compliant
Sealable	No
Contact Current Rating	500mA
Circuit Application	Signal
Mating Alignment	With
Preloaded	Yes
Height	17mm
Contact Finish Thickness	8.00μin 0.203μm
Contact Finish Thickness - Mating	200 nm
Height Above Board	0.620 15.75mm
Stack Height	18mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1735482-2 Product Details

1735482-2 Overview

This product is packaged in a Receptacle, Outer Shroud Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the Free Height (FH) Series.It is possible to ensure that Board Guide remains constant during operation.Use it below 125°C.A minimum temperature of -40°C must be maintained for the operation of this device.As this device is suitable for use with a 100V supply, it can also be used with that supply.
