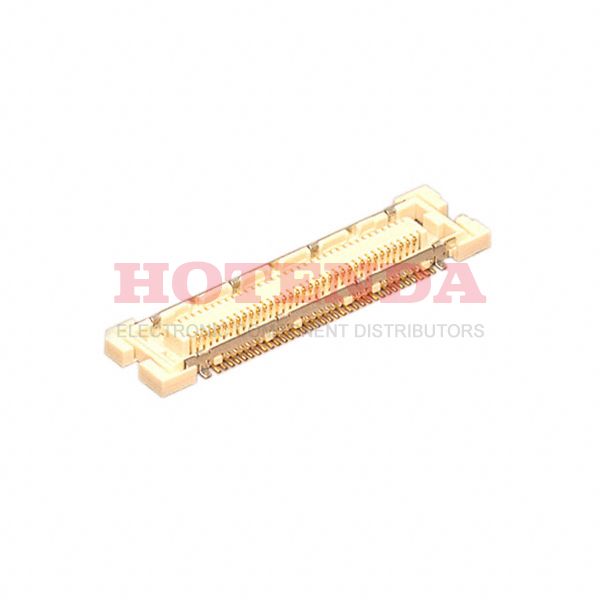

Name: FX11LB-68S-SV
Brand: Hirose Electric Co Ltd
SKU: FX11LB-68S-SV
Price: 3.61000 USD
Availability: InStock

new-10%

FX11LB-68S-SV

Manufacturer part number:FX11LB-68S-SV

Manufacturer:Hirose Electric Co Ltd

Description:FX11LB-68S-SV datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FX11LB-68S-SV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Bronze
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Plastic
Packaging	Bag
Published	2003
Series	FX11
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	68
Number of Rows	2
Additional Feature	HIGH DENSITY, LOW PROFILE
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.020 0.50mm
Total Number of Contacts	68
Reach Compliance Code	unknown
Current Rating	300mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Voltage - Rated AC	50V
Reliability	COMMERCIAL
Body Length or Diameter	0.984 inch
Number Of PCB Rows	2
Lead Pitch	500μm
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Contact Gender	FEMALE
Operating Temperature (Min)	-55°C
UL Flammability Code	94V-0
Housing Color	Beige
Body Depth	0.075 inch
Rated Current (Signal)	0.3A
Contact Style	BELLOWED TYPE
Contact Resistance	70mOhm
Insulation Resistance	100000000Ohm
Polarization Key	POLARIZED HOUSING
Durability	50 Cycles
Contact Pattern	RECTANGULAR
Contact Finish Thickness	3.94μin 0.10μm
Height Above Board	0.065 1.65mm
Stack Height (Mating)	2mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

FX11LB-68S-SV Product Details

FX11LB-68S-SV Overview

The packaging contains Receptacle, Center Strip Contacts.An Bag case is utilized for packaging the product.There is a mounting type of Surface Mount for this device.This is from the FX11 Series.In operation, Solder Retention should remain constant.For mounting this part, a Surface Mount socket is required.Besides that, there's also HIGH DENSITY, LOW PROFILE, to name a few.
