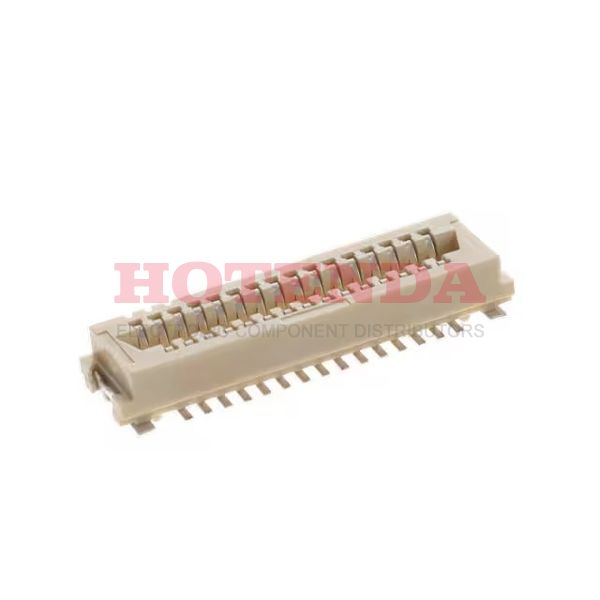

Name: 91932-31131LF
Brand: Amphenol ICC (FCI)
SKU: 91932-31131LF
Price: 2.96000 USD
Availability: InStock

new-10%

91932-31131LF

Manufacturer part number:91932-31131LF

Manufacturer:Amphenol ICC (FCI)

Description:91932-31131LF datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Amphenol ICC (FCI) stock available on our website

Case Package:SOT-23

Datasheet:91932-31131LF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Material	COPPER ALLOY
Contact Plating	GXT, Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	Conan™, MezzSelect™
JESD-609 Code	e3
Feature	Board Guide, Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	31
Max Operating Temperature	130°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Female
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	31
Orientation	Straight
Depth	5.59mm
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold or Gold, GXT™
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Mating Information	MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code	94V-0
Housing Color	Natural
Contact Resistance	30mOhm
Contact Pattern	STAGGERED
Length	20.3mm
Contact Finish Thickness	15.0μin 0.38μm
Plating Thickness	15μin
Height Above Board	0.129 3.28mm
Stack Height (Mating)	4.15mm 4.5mm 5mm 5.5mm 6mm 7mm 7.52mm
RoHS Status	RoHS Compliant

91932-31131LF Product Details

91932-31131LF Overview

This product is packaged in a Receptacle, Outer Shroud Contacts cartonWe use a Tape & Reel (TR) case to package the product.Surface Mount indicates that the device is mounted.The product is a member of the Conan?, MezzSelect? Series.Operating the device, it is possible to maintain Board Guide, Solder Retention.A Surface Mount socket is needed to mount this.Ideally, it should be used when the temperature is below 130°C.Temperatures below -55°C are required for this device.
