Name: FX22-80P-0.5SH
Brand: Hirose Electric Co Ltd
SKU: FX22-80P-0.5SH
Price: 4.54000 USD
Availability: InStock

new-10%

FX22-80P-0.5SH

Manufacturer part number:FX22-80P-0.5SH

Manufacturer:Hirose Electric Co Ltd

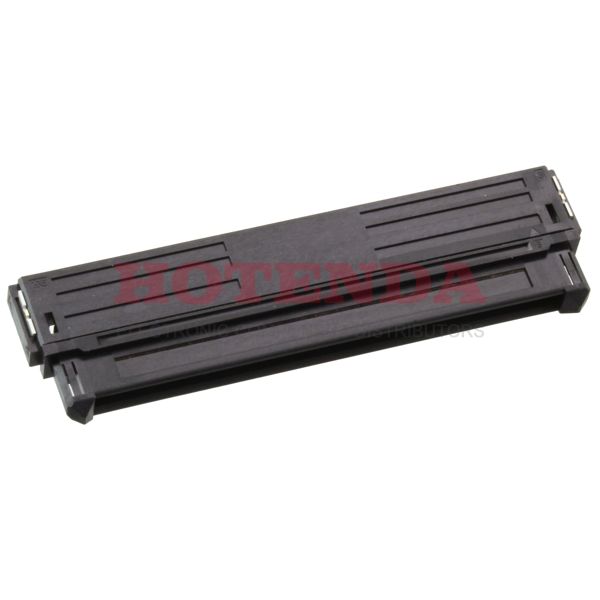

Description:FX22-80P-0.5SH datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:FX22-80P-0.5SH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	COPPER ALLOY
Mount	Surface Mount
Mounting Type	Surface Mount, Right Angle
Insulation Material	POLYAMIDE
Packaging	Tape & Reel (TR)
Series	FunctionMax™ FX22
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug, Non-Gendered
Number of Positions	80
Number of Rows	1
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	AU
Pitch	0.020 0.50mm
Total Number of Contacts	80
Reach Compliance Code	unknown
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Number Of PCB Rows	1
PCB Contact Pattern	RECTANGULAR
Operating Temperature (Max)	85°C
Contact Gender	MALE
Operating Temperature (Min)	-55°C
Rated Current (Signal)	0.7A
Contact Resistance	70mOhm
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Height Above Board	0.165 4.20mm
RoHS Status	RoHS Compliant

FX22-80P-0.5SH Product Details

FX22-80P-0.5SH Overview

A Plug, Non-Gendered packaging is included.A Tape & Reel (TR) case is used for packaging.Surface Mount, Right Angle is the mounting type of the device.The product is part of the FunctionMax? FX22 Series.In operation, it is possible to ensure that Board Guide is maintained.This part must be mounted using a Surface Mount socket.
